ExperimentCentrifuge
ExperimentCentrifuge[Samples]⟹Protocol
generates a Protocol to subject the provided Samples to greater than gravitational force by rapid spinning.
ExperimentCentrifuge allows the user to specify samples to be moved to a compatible vial and exposed to high-g conditions imparted by spinning the samples rapidly in a circle in a process called centrifugation. Samples after centrifugation can then be collected and used in further experiments.
Experimental Principles
Figure 1.1: Procedural overview of a centrifugation experiment. Step 1: SamplesIn are transferred to centrifuge-compatible tubes if necessary. Balancing solutions in the same types of containers are prepared. Step 2: Centrifuge tubes are loaded into the centrifuge where they are spun at the desired speed for the desired time. Incubation at between -10ºC and 40ºC is optional.
Instrumentation
Microfuge 16
Figure 2.1: Samples to be centrifuged are counterbalanced in available centrifuge slots. The centrifuge spins the samples around the axis of the rotor. As the samples spin, they are exposed to a centrifugal force that is significantly larger than typical gravitational acceleration. The samples can subsequently be collected at the end of the experiment.
Beckman Coulter Microfuge 20R
Figure 2.2: Samples to be centrifuged are counterbalanced in available centrifuge bucket slots. The centrifuge spins the buckets around the axis of the main rotor, while applying optional heating or cooling. As the samples spin, they are exposed to a centrifugal force that is significantly larger than typical gravitational acceleration. The samples can subsequently be collected at the end of the experiment.
Eppendorf 5920R
Figure 2.3: Samples to be centrifuged are counterbalanced in available centrifuge bucket slots. The centrifuge spins the buckets around the axis of the main rotor, while applying optional cooling to prevent a buildup of heat caused by the friction of spinning the rotor. As the samples spin, they are exposed to a centrifugal force that is significantly larger than typical gravitational acceleration. The samples can subsequently be collected at the end of the experiment.
Avanti J-15R with JA-10.100 Fixed Angle Rotor
Figure 2.4: Samples to be centrifuged are counterbalanced in available centrifuge rotor slots. The centrifuge spins the rotors around the axis of the main rotor, while applying optional heating or cooling. As the samples spin, they are exposed to a centrifugal force that is significantly larger than typical gravitational acceleration. The samples can subsequently be collected at the end of the experiment.
Sorvall X4R Pro-MD
Figure 2.5: Samples to be centrifuged are counterbalanced in available centrifuge bucket slots. The centrifuge spins the buckets around the axis of the main rotor, while applying optional cooling to prevent a buildup of heat caused by the friction of spinning the rotor. As the samples spin, they are exposed to a centrifugal force that is significantly larger than typical gravitational acceleration. The samples can subsequently be collected at the end of the experiment.
Optima XPN 80 Preparative Ultracentrifuge
Figure 2.6: This diagram demonstrates the major components of the instrument (Optima XPN 80 Preparative Ultracentrifuge) include a rotor chamber with motor, a vacuum system, and a temperature sensing and control system.A rotor can be loaded into the chamber and spun by the embedded motor at ultra - high speed.A solid state thermopile in the bottom of the rotor chamber monitors rotor temperature.Meanwhile, a solid state thermoelectric refrigeration and heating system controls the temperature from 0 ℃ to 40 ℃.In order to run the samples at best performance, this instrument requires to pull a vacuum on the rotor chamber.Extremely high spinning speed may cause overheating and high frictional forces, so to avoid sample/instrument damage, ultracentrifuges are equipped with both vacuum and refrigeration systems that reduce friction.To achieve higher vacuum level, the vacuum system composes of two pumps, a diffusion pump and a mechanical vacuum pump.Four types of rotors are compatible with the ultracentrifuge.One of them is a swing - bucket rotor SW 32 Ti.Three of them are fixed - angle rotors : Type 45 Ti, Type 70 Ti, and Type 70.1 Ti.The capacity, maximum speed and application of each rotor are different.SW 32 Ti is commonly used for density gradient centrifugation because the samples are centrifuged along the horizontal direction with less influence from gravity force (i.e., mass).Type 45 Ti is with the highest capacity, while Type 70 Ti and 70.1 Ti are with the highest maximum spinning speed. For each type of the rotor, two identical rotors are available except one is served as cold rotor (stored in refrigerator for experiment under low temperature.
VSpin
Figure 2.7: The VSpin robotic centrifuge has a swinging bucket rotor that can hold two SBS standard plates. Plates can be loaded and spins can be performed fully robotically. This centrifuge is accessible only using RoboticSamplePreparation protocols.
HiG4
Experiment Options
General
Instrument
Default Calculation: Automatically set to a centrifuge that can attain the specified intensity, time, temperature, and sterility and (if possible) that is compatible with the sample in its current container.
Pattern Description: An object of type or subtype Model[Instrument, Centrifuge] or Object[Instrument, Centrifuge]
Programmatic Pattern: ObjectP[{Model[Instrument, Centrifuge], Object[Instrument, Centrifuge]}] | Automatic
RotorGeometry
Indicates if the provided samples will be spun at a fixed angle or freely pivot. Unique when Preparation -> Manual.
Default Calculation: Automatically set to a FixedAngleRotor if more than one rotors are available that fit the intensity and container constraints.
RotorAngle
The angle of the samples in the rotor that will be applied to spin the provided samples if ultracentrifuge instrument is selected. Unique when Preparation -> Manual.
Default Calculation: Automatically set to a rotor that could spin samples at specific angle relative to the axis of rotation.
ChilledRotor
Indicates if the ultracentrifuge rotor is stored in refrigerator between usage thus it is prechilled on loading into the ultracentrifuge. Unique when Preparation -> Manual.
Default Calculation: Automatically set to true if the ultracentrifuge is utilized at cold temperature.
Rotor
The centrifuge rotor that will be used to spin the provided samples if ultracentrifuge instrument is selected. Unique when Preparation -> Manual.
Default Calculation: Automatically set to a rotor that can attain the specified intensity, time, temperature, and sterility and (if possible) fits the sample in its current container.
Pattern Description: An object of type or subtype Model[Container, CentrifugeRotor] or Object[Container, CentrifugeRotor] or a prepared sample or Null.
Programmatic Pattern: ((ObjectP[{Model[Container, CentrifugeRotor], Object[Container, CentrifugeRotor]}] | _String) | Automatic) | Null
Intensity
Default Calculation: Automatically resolves to one fifth of the maximum rotational rate of the centrifuge, rounded to the nearest attainable centrifuge precision.
Pattern Description: Greater than 0 revolutions per minute or greater than 0 standard accelerations due to gravity on the surface of the earth.
Time
Temperature
The temperature at which the centrifuge chamber will be held while the samples are being centrifuged.
Pattern Description: Ambient or greater than or equal to -10 degrees Celsius and less than or equal to 40 degrees Celsius.
CollectionContainer
The container that will be stacked on the bottom of the sample's container to collect the filtrate passing through the filter container.
Default Calculation: Automatically set to Model[Container, Plate, "96-well 2mL Deep Well Plate"] if the sample is in a filter plate.
Pattern Description: An object of type or subtype Model[Container] or Object[Container] or a prepared sample or {Index, Container} or Null.
Programmatic Pattern: (((ObjectP[{Model[Container], Object[Container]}] | _String) | {Alternatives[GreaterEqualP[1, 1]], (ObjectP[{Model[Container], Object[Container]}] | _String) | Automatic}) | Automatic) | Null
Preparation
Indicates if this unit operation is carried out primarily robotically or manually. Manual unit operations are executed by a laboratory operator and robotic unit operations are executed by a liquid handling work cell.
WorkCell
The automated workstation with a collection of integrated instruments on which this unit operation will be will be performed if Preparation -> Robotic.
Sterile
Protocol
NumberOfReplicates
Number of times each of the input samples will be centrifuged using identical experimental parameters.
Model Input
PreparedModelContainer
Indicates the container in which a Model[Sample] specified as input to the experiment function will be prepared.
Default Calculation: If PreparedModelAmount is set to All and when the input model has a product associated with both Amount and DefaultContainerModel populated, automatically set to the DefaultContainerModel value in the product. Otherwise set to Model[Container, Vessel, "2mL Tube"].
PreparedModelAmount
Indicates the amount of a Model[Sample] specified as input to the experiment function that will be prepared in the PreparedModelContainer. When set to All and the input model sample is not preparable, the entire amount of the input model sample that comes from one of the Products is prepared. The selected product must have both Amount and DefaultContainerModel populated, and it must not be a KitProduct. When set to All and the input model is preparable such as water, 1 Milliliter of the input model sample is prepared.
Programmatic Pattern: ((RangeP[1*Microliter, 20*Liter] | RangeP[1*Milligram, 20*Kilogram] | GreaterP[0*Unit, 1*Unit] | GreaterP[0., 1.] | All) | Automatic) | Null
Post Experiment
SamplesInStorageCondition
The non-default conditions under which the SamplesIn of this experiment should be stored after the protocol is completed. If left unset, SamplesIn will be stored according to their current StorageCondition.
Pattern Description: {AmbientStorage, EnclosedAmbientStorage, Refrigerator, Freezer, DeepFreezer, CryogenicStorage, YeastIncubation, YeastShakingIncubation, BacterialIncubation, BacterialShakingIncubation, MammalianIncubation, ViralIncubation, CrystalIncubation, AcceleratedTesting, IntermediateTesting, LongTermTesting, UVVisLightTesting} or Disposal or Null.
Sample Prep Options
Preparatory Incubation
Incubate
Indicates if the SamplesIn should be incubated at a fixed temperature prior to starting the experiment or any aliquoting. Sample Preparation occurs in the order of Incubation, Centrifugation, Filtration, and then Aliquoting (if specified).
Default Calculation: Resolves to True if any of the corresponding Incubation options are set. Otherwise, resolves to False.
IncubationTemperature
Temperature at which the SamplesIn should be incubated for the duration of the IncubationTime prior to starting the experiment.
Pattern Description: Ambient or greater than or equal to -20 degrees Celsius and less than or equal to 500 degrees Celsius or Null.
Programmatic Pattern: ((Ambient | RangeP[$MinIncubationTemperature, $MaxIncubationTemperature]) | Automatic) | Null
IncubationTime
Duration for which SamplesIn should be incubated at the IncubationTemperature, prior to starting the experiment.
Mix
Default Calculation: Automatically resolves to True if any Mix related options are set. Otherwise, resolves to False.
MixType
Default Calculation: Automatically resolves based on the container of the sample and the Mix option.
Pattern Description: Roll, Vortex, Sonicate, Pipette, Invert, Stir, Shake, Homogenize, Swirl, Disrupt, or Nutate or Null.
MixUntilDissolved
Indicates if the mix should be continued up to the MaxIncubationTime or MaxNumberOfMixes (chosen according to the mix Type), in an attempt dissolve any solute. Any mixing/incubation will occur prior to starting the experiment.
Default Calculation: Automatically resolves to True if MaxIncubationTime or MaxNumberOfMixes is set.
MaxIncubationTime
Maximum duration of time for which the samples will be mixed while incubated in an attempt to dissolve any solute, if the MixUntilDissolved option is chosen. This occurs prior to starting the experiment.
Default Calculation: Automatically resolves based on MixType, MixUntilDissolved, and the container of the given sample.
IncubationInstrument
Default Calculation: Automatically resolves based on the options Mix, Temperature, MixType and container of the sample.
Pattern Description: An object of type or subtype Model[Instrument, Roller], Model[Instrument, OverheadStirrer], Model[Instrument, Vortex], Model[Instrument, Shaker], Model[Instrument, BottleRoller], Model[Instrument, Roller], Model[Instrument, Sonicator], Model[Instrument, HeatBlock], Model[Instrument, Homogenizer], Model[Instrument, Disruptor], Model[Instrument, Nutator], Model[Instrument, Thermocycler], Model[Instrument, EnvironmentalChamber], Model[Instrument, Pipette], Object[Instrument, Roller], Object[Instrument, OverheadStirrer], Object[Instrument, Vortex], Object[Instrument, Shaker], Object[Instrument, BottleRoller], Object[Instrument, Roller], Object[Instrument, Sonicator], Object[Instrument, HeatBlock], Object[Instrument, Homogenizer], Object[Instrument, Disruptor], Object[Instrument, Nutator], Object[Instrument, Thermocycler], Object[Instrument, EnvironmentalChamber], or Object[Instrument, Pipette] or Null.
AnnealingTime
Minimum duration for which the SamplesIn should remain in the incubator allowing the system to settle to room temperature after the IncubationTime has passed but prior to starting the experiment.
IncubateAliquotContainer
The desired type of container that should be used to prepare and house the incubation samples which should be used in lieu of the SamplesIn for the experiment.
Programmatic Pattern: ((ObjectP[Model[Container]] | {GreaterEqualP[1, 1] | (Automatic | Null), (ObjectP[{Model[Container], Object[Container]}] | _String) | Automatic}) | Automatic) | Null
IncubateAliquotDestinationWell
The desired position in the corresponding IncubateAliquotContainer in which the aliquot samples will be placed.
Default Calculation: Automatically resolves to A1 in containers with only one position. For plates, fills wells in the order provided by the function AllWells.
IncubateAliquot
The amount of each sample that should be transferred from the SamplesIn into the IncubateAliquotContainer when performing an aliquot before incubation.
Default Calculation: Automatically set as the smaller between the current sample volume and the maximum volume of the destination container.
Pattern Description: All or greater than or equal to 1 microliter and less than or equal to 20 liters or Null.
Preparatory Filtering
Filtration
Indicates if the SamplesIn should be filter prior to starting the experiment or any aliquoting. Sample Preparation occurs in the order of Incubation, Centrifugation, Filtration, and then Aliquoting (if specified).
Default Calculation: Resolves to True if any of the corresponding Filter options are set. Otherwise, resolves to False.
FiltrationType
Default Calculation: Will automatically resolve to a filtration type appropriate for the volume of sample being filtered.
FilterInstrument
Default Calculation: Will automatically resolved to an instrument appropriate for the filtration type.
Pattern Description: An object of type or subtype Model[Instrument, FilterBlock], Object[Instrument, FilterBlock], Model[Instrument, PeristalticPump], Object[Instrument, PeristalticPump], Model[Instrument, VacuumPump], Object[Instrument, VacuumPump], Model[Instrument, Centrifuge], Object[Instrument, Centrifuge], Model[Instrument, SyringePump], or Object[Instrument, SyringePump] or Null.
Programmatic Pattern: (ObjectP[{Model[Instrument, FilterBlock], Object[Instrument, FilterBlock], Model[Instrument, PeristalticPump], Object[Instrument, PeristalticPump], Model[Instrument, VacuumPump], Object[Instrument, VacuumPump], Model[Instrument, Centrifuge], Object[Instrument, Centrifuge], Model[Instrument, SyringePump], Object[Instrument, SyringePump]}] | Automatic) | Null
Filter
The filter that should be used to remove impurities from the SamplesIn prior to starting the experiment.
Default Calculation: Will automatically resolve to a filter appropriate for the filtration type and instrument.
Pattern Description: An object of type or subtype Model[Container, Plate, Filter], Model[Container, Vessel, Filter], or Model[Item, Filter] or Null.
Programmatic Pattern: (ObjectP[{Model[Container, Plate, Filter], Model[Container, Vessel, Filter], Model[Item, Filter]}] | Automatic) | Null
FilterMaterial
The membrane material of the filter that should be used to remove impurities from the SamplesIn prior to starting the experiment.
Default Calculation: Resolves to an appropriate filter material for the given sample is Filtration is set to True.
Pattern Description: Cellulose, Cotton, Polyethylene, Polypropylene, PTFE, Nylon, PES, PLUS, PVDF, GlassFiber, GHP, UHMWPE, EPDM, DuraporePVDF, GxF, ZebaDesaltingResin, NickelResin, AgaroseResin, CobaltResin, Silica, HLB, or AnoporeAlumina or Null.
PrefilterMaterial
The material from which the prefilter filtration membrane should be made of to remove impurities from the SamplesIn prior to starting the experiment.
Pattern Description: Cellulose, Cotton, Polyethylene, Polypropylene, PTFE, Nylon, PES, PLUS, PVDF, GlassFiber, GHP, UHMWPE, EPDM, DuraporePVDF, GxF, ZebaDesaltingResin, NickelResin, AgaroseResin, CobaltResin, Silica, HLB, or AnoporeAlumina or Null.
FilterPoreSize
The pore size of the filter that should be used when removing impurities from the SamplesIn prior to starting the experiment.
Default Calculation: Resolves to an appropriate filter pore size for the given sample is Filtration is set to True.
Pattern Description: 0.008 micrometers, 0.02 micrometers, 0.1 micrometers, 0.2 micrometers, 0.22 micrometers, 0.45 micrometers, 1. micrometer, 1.1 micrometers, 2.5 micrometers, 6. micrometers, 20. micrometers, 30. micrometers, or 100. micrometers or Null.
PrefilterPoreSize
The pore size of the filter; all particles larger than this should be removed during the filtration.
Pattern Description: 0.008 micrometers, 0.02 micrometers, 0.1 micrometers, 0.2 micrometers, 0.22 micrometers, 0.45 micrometers, 1. micrometer, 1.1 micrometers, 2.5 micrometers, 6. micrometers, 20. micrometers, 30. micrometers, or 100. micrometers or Null.
FilterSyringe
Default Calculation: Resolves to an syringe appropriate to the volume of sample being filtered, if Filtration is set to True.
Pattern Description: An object of type or subtype Model[Container, Syringe] or Object[Container, Syringe] or a prepared sample or Null.
Programmatic Pattern: ((ObjectP[{Model[Container, Syringe], Object[Container, Syringe]}] | _String) | Automatic) | Null
FilterHousing
The filter housing that should be used to hold the filter membrane when filtration is performed using a standalone filter membrane.
Default Calculation: Resolve to an housing capable of holding the size of the membrane being used, if filter with Membrane FilterType is being used and Filtration is set to True.
Pattern Description: An object of type or subtype Model[Instrument, FilterHousing], Object[Instrument, FilterHousing], Model[Instrument, FilterBlock], or Object[Instrument, FilterBlock] or Null.
Programmatic Pattern: (ObjectP[{Model[Instrument, FilterHousing], Object[Instrument, FilterHousing], Model[Instrument, FilterBlock], Object[Instrument, FilterBlock]}] | Automatic) | Null
FilterIntensity
Default Calculation: Will automatically resolve to 2000 GravitationalAcceleration if FiltrationType is Centrifuge and Filtration is True.
Pattern Description: Greater than 0 revolutions per minute or greater than 0 standard accelerations due to gravity on the surface of the earth or Null.
Programmatic Pattern: ((GreaterP[0*RPM] | GreaterP[0*GravitationalAcceleration]) | Automatic) | Null
FilterTime
Default Calculation: Will automatically resolve to 5 Minute if FiltrationType is Centrifuge and Filtration is True.
FilterTemperature
The temperature at which the centrifuge chamber will be held while the samples are being centrifuged during filtration.
Default Calculation: Will automatically resolve to 22 Celsius if FiltrationType is Centrifuge and Filtration is True.
FilterContainerOut
The desired container filtered samples should be produced in or transferred into by the end of filtration, with indices indicating grouping of samples in the same plates, if desired.
Default Calculation: Automatically set as the PreferredContainer for the Volume of the sample. For plates, attempts to fill all wells of a single plate with the same model before using another one.
Pattern Description: An object of type or subtype Model[Container] or Object[Container] or a prepared sample or {Index, Container} or Null.
Programmatic Pattern: (((ObjectP[{Model[Container], Object[Container]}] | _String) | {GreaterEqualP[1, 1] | Automatic, (ObjectP[{Model[Container], Object[Container]}] | _String) | Automatic}) | Automatic) | Null
FilterAliquotDestinationWell
The desired position in the corresponding AliquotContainer in which the aliquot samples will be placed.
Default Calculation: Automatically resolves to A1 in containers with only one position. For plates, fills wells in the order provided by the function AllWells.
FilterAliquotContainer
The desired type of container that should be used to prepare and house the filter samples which should be used in lieu of the SamplesIn for the experiment.
Programmatic Pattern: ((ObjectP[Model[Container]] | {GreaterEqualP[1, 1] | (Automatic | Null), (ObjectP[{Model[Container], Object[Container]}] | _String) | Automatic}) | Automatic) | Null
FilterAliquot
The amount of each sample that should be transferred from the SamplesIn into the FilterAliquotContainer when performing an aliquot before filtration.
Default Calculation: Automatically set as the smaller between the current sample volume and the maximum volume of the destination container.
Pattern Description: All or greater than or equal to 1 microliter and less than or equal to 20 liters or Null.
FilterSterile
Default Calculation: Resolve to False if Filtration is indicated. If sterile filtration is desired, this option must manually be set to True.
Aliquoting
Aliquot
Indicates if aliquots should be taken from the SamplesIn and transferred into new AliquotSamples used in lieu of the SamplesIn for the experiment. Note that if NumberOfReplicates is specified this indicates that the input samples will also be aliquoted that number of times. Note that Aliquoting (if specified) occurs after any Sample Preparation (if specified).
AliquotAmount
Default Calculation: Automatically set as the smaller between the current sample volume and the maximum volume of the destination container if a liquid, or the current Mass or Count if a solid or counted item, respectively.
Programmatic Pattern: ((RangeP[1*Microliter, 20*Liter] | RangeP[1*Milligram, 20*Kilogram] | GreaterP[0*Unit, 1*Unit] | GreaterP[0., 1.] | All) | Automatic) | Null
TargetConcentration
The desired final concentration of analyte in the AliquotSamples after dilution of aliquots of SamplesIn with the ConcentratedBuffer and BufferDiluent which should be used in lieu of the SamplesIn for the experiment.
TargetConcentrationAnalyte
Default Calculation: Automatically set to the first value in the Analytes field of the input sample, or, if not populated, to the first analyte in the Composition field of the input sample, or if none exist, the first identity model of any kind in the Composition field.
Pattern Description: An object of type or subtype Model[Molecule], Model[Molecule, cDNA], Model[Molecule, Oligomer], Model[Molecule, Transcript], Model[Molecule, Protein], Model[Molecule, Protein, Antibody], Model[Molecule, Carbohydrate], Model[Molecule, Polymer], Model[Resin], Model[Resin, SolidPhaseSupport], Model[Lysate], Model[ProprietaryFormulation], Model[Virus], Model[Cell], Model[Cell, Mammalian], Model[Cell, Bacteria], Model[Cell, Yeast], Model[Tissue], Model[Material], or Model[Species] or Null.
AssayVolume
Default Calculation: Automatically determined based on Volume and TargetConcentration option values.
Pattern Description: Greater than or equal to 1 microliter and less than or equal to 20 liters or Null.
ConcentratedBuffer
The concentrated buffer which should be diluted by the BufferDilutionFactor in the final solution (i.e., the combination of the sample, ConcentratedBuffer, and BufferDiluent). The ConcentratedBuffer and BufferDiluent will be combined and then mixed with the sample, where the combined volume of these buffers is the difference between the AliquotAmount and the total AssayVolume.
Pattern Description: An object of type or subtype Model[Sample] or Object[Sample] or a prepared sample or Null.
BufferDilutionFactor
The dilution factor by which the concentrated buffer should be diluted in the final solution (i.e., the combination of the sample, ConcentratedBuffer, and BufferDiluent). The ConcentratedBuffer and BufferDiluent will be combined and then mixed with the sample, where the combined volume of these buffers is the difference between the AliquotAmount and the total AssayVolume.
Default Calculation: If ConcentratedBuffer is specified, automatically set to the ConcentratedBufferDilutionFactor of that sample; otherwise, set to Null.
BufferDiluent
The buffer used to dilute the aliquot sample such that ConcentratedBuffer is diluted by BufferDilutionFactor in the final solution. The ConcentratedBuffer and BufferDiluent will be combined and then mixed with the sample, where the combined volume of these buffers is the difference between the AliquotAmount and the total AssayVolume.
Default Calculation: Automatically resolves to Model[Sample, "Milli-Q water"] if ConcentratedBuffer is specified; otherwise, resolves to Null.
Pattern Description: An object of type or subtype Model[Sample] or Object[Sample] or a prepared sample or Null.
AssayBuffer
The buffer that should be added to any aliquots requiring dilution, where the volume of this buffer added is the difference between the AliquotAmount and the total AssayVolume.
Default Calculation: Automatically resolves to Model[Sample, "Milli-Q water"] if ConcentratedBuffer is not specified; otherwise, resolves to Null.
Pattern Description: An object of type or subtype Model[Sample] or Object[Sample] or a prepared sample or Null.
AliquotSampleStorageCondition
The non-default conditions under which any aliquot samples generated by this experiment should be stored after the protocol is completed.
Pattern Description: {AmbientStorage, EnclosedAmbientStorage, Refrigerator, Freezer, DeepFreezer, CryogenicStorage, YeastIncubation, YeastShakingIncubation, BacterialIncubation, BacterialShakingIncubation, MammalianIncubation, ViralIncubation, CrystalIncubation, AcceleratedTesting, IntermediateTesting, LongTermTesting, UVVisLightTesting} or Disposal or Null.
DestinationWell
The desired position in the corresponding AliquotContainer in which the aliquot samples will be placed.
Default Calculation: Automatically resolves to A1 in containers with only one position. For plates, fills wells in the order provided by the function AllWells.
Pattern Description: Any well from A1 to H12 or list of one or more any well from A1 to H12 or any well from A1 to H12 entries or Null.
Programmatic Pattern: ((WellPositionP | {((Automatic | Null) | WellPositionP)..}) | Automatic) | Null
AliquotContainer
The desired type of container that should be used to prepare and house the aliquot samples, with indices indicating grouping of samples in the same plates, if desired. This option will resolve to be the length of the SamplesIn * NumberOfReplicates.
Default Calculation: Automatically set as the PreferredContainer for the AssayVolume of the sample. For plates, attempts to fill all wells of a single plate with the same model before aliquoting into the next.
Pattern Description: An object of type or subtype Model[Container] or Object[Container] or a prepared sample or Automatic or Null or {Index, Container} or list of one or more an object of type or subtype Model[Container] or Object[Container] or a prepared sample or Automatic or Null entries or list of one or more Automatic or Null or {Index, Container} entries.
Programmatic Pattern: (((ObjectP[{Model[Container], Object[Container]}] | _String) | (Automatic | Null) | {GreaterEqualP[1, 1] | (Automatic | Null), (ObjectP[{Model[Container], Object[Container]}] | _String) | (Automatic | Null)} | {((ObjectP[{Model[Container], Object[Container]}] | _String) | (Automatic | Null))..} | {({GreaterEqualP[1, 1] | (Automatic | Null), (ObjectP[{Model[Container], Object[Container]}] | _String) | (Automatic | Null)} | (Automatic | Null))..}) | Automatic) | Null
AliquotPreparation
Default Calculation: Automatic resolution will occur based on manipulation volumes and container types.
ConsolidateAliquots
Sample Preparation
PreparatoryUnitOperations
Specifies a sequence of transferring, aliquoting, consolidating, or mixing of new or existing samples before the main experiment. These prepared samples can be used in the main experiment by referencing their defined name. For more information, please reference the documentation for ExperimentSamplePreparation.
Protocol Options
Organizational Information
Template
A template protocol whose methodology should be reproduced in running this experiment. Option values will be inherited from the template protocol, but can be individually overridden by directly specifying values for those options to this Experiment function.
Pattern Description: An object of type or subtype Object[Protocol] or an object of type or subtype of Object[Protocol] with UnresolvedOptions, ResolvedOptions specified or Null.
Programmatic Pattern: (ObjectP[Object[Protocol]] | FieldReferenceP[Object[Protocol], {UnresolvedOptions, ResolvedOptions}]) | Null
Name
A object name which should be used to refer to the output object in lieu of an automatically generated ID number.
Post Experiment
MeasureWeight
Indicates if any solid samples that are modified in the course of the experiment should have their weights measured and updated after running the experiment. Please note that public samples are weighed regardless of the value of this option.
MeasureVolume
Indicates if any liquid samples that are modified in the course of the experiment should have their volumes measured and updated after running the experiment. Please note that public samples are volume measured regardless of the value of this option.
ImageSample
Preferred Input Containers
Warnings and Errors
Messages (37)
CentrifugePrecision (1)
ConflictingCollectionContainers (1)

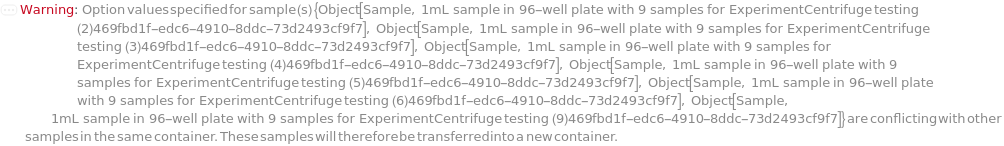

ConflictingOptionsWithinContainer (1)
ContainerCentrifugeIncompatible (4)

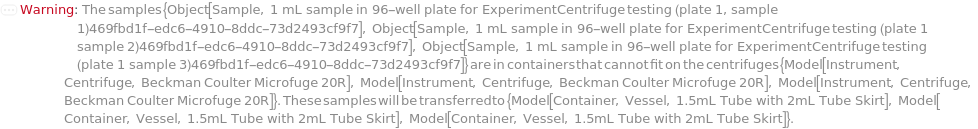

If a centrifuge cannot be found that works with the current container model, the sample will be transferred to another container. If possible, the sample will be transferred to a plate if it is currently in a plate, and to a vessel if it is currently in a vessel.:
If a centrifuge cannot be found that works with the current container model, the sample will be transferred to another container. The sample may be moved from a plate to a vessel or vice versa if a container of the same type could not be found:

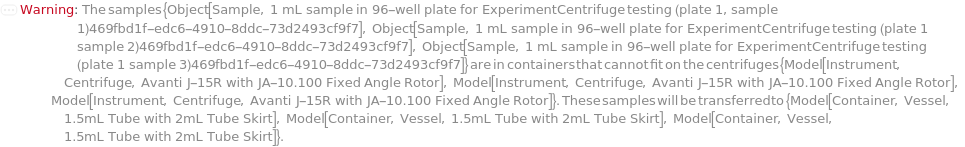

If the current container model does not work with the desired centrifuge, the sample will be transferred to another container. If possible, the sample will be transferred to a plate if it is currently in a plate, and to a vessel if it is currently in a vessel.:
If the current container model does not work with the desired centrifuge, the sample will be transferred to another container. The sample may be moved from a plate to a vessel or vice versa if a container of the same type could not be found:
EmptyContainer (2)
IncompatibleCentrifuge (2)
InstrumentCentrifugeTypeChilledRotorConflict (1)
InstrumentPrecision (2)
InvalidCounterweights (1)
NoCompatibleCentrifuge (1)
NoCompatibleRotor (1)
NoTransferContainerFound (2)
If the sample is not in a container that is compatible with a centrifuge of the desired settings and no compatible container could be found to transfer the sample into, throw an error and return $Failed:
If the sample is not in a container that is compatible with the desired centrifuge and no compatible container could be found to transfer the sample into, throw an error and return $Failed:
ObjectDoesNotExist (6)
Throw a message if we have a sample that does not exist (name form):
Throw a message if we have a container that does not exist (name form):
Throw a message if we have a sample that does not exist (ID form):
Throw a message if we have a container that does not exist (ID form):
Do NOT throw a message if we have a simulated sample but a simulation is specified that indicates that it is simulated:
Do NOT throw a message if we have a simulated container but a simulation is specified that indicates that it is simulated:
RotorDefaultStorageConditionChilledRotorConflict (1)
RotorInstrumentConflict (1)
RotorRotorAngleConflict (1)
RotorRotorGeometryConflict (1)
SamplesNotInFilterContainer (1)

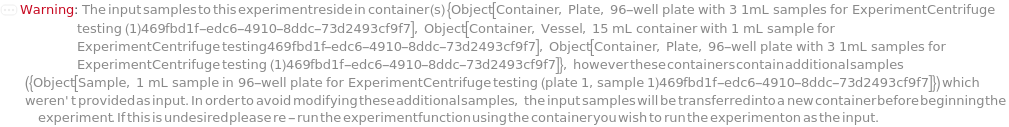

SampleStowaways (1)
SterileConflict (1)
UltracentrifugeChilledRotorHighTempConflict (1)
UltracentrifugeChilledRotorLowTempConflict (1)
Possible Issues
Microfuge 16 temperature is not controlled
The Microfuge 16 centrifuge is unable to control its internal temperature. If extended centrifuge times are called, the SamplesIn may be heated to an undesirable temperature. If this may be a concern, please investigate using the Microfuge 20R instrument, which may be refrigerated.
BioNex HiG4 centrifuge requires skirted plates
The BioNex HiG4 rotor bucket is equipped with a pedestal to support skirted plates during high intensity spinning. If plates with short or no skirt are used in this centrifuge, they may not be effectively retained and may fall out of the bucket during spinning. Please make sure that the skirt of your plate is longer than 1.2 mm.
Last modified on Thu 4 Sep 2025 17:19:40
