Documentation

Inspect

Inspect[object]⟹table

displays all of the information stored in the database for object in a formatted grid with a plot of the object followed by its fields and values.

Inspect[type]⟹table

displays all of the possible information a given type could store in a formatted grid with its fields and descriptions of the fields.

Details

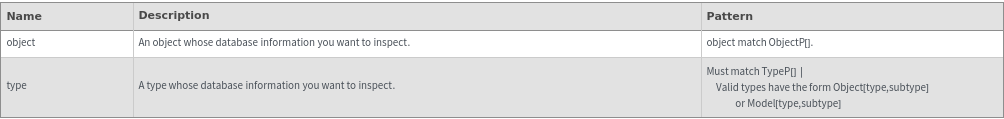

Input

Output

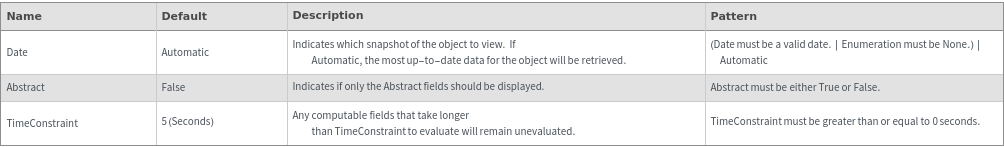

General Options

Messages

TooManyObjects Inspect can only take a maximum of 10 objects. Please reduce the number of objects and try again.

Examples

Basic Examples (4)

Inspect the database entry for NMR Data:

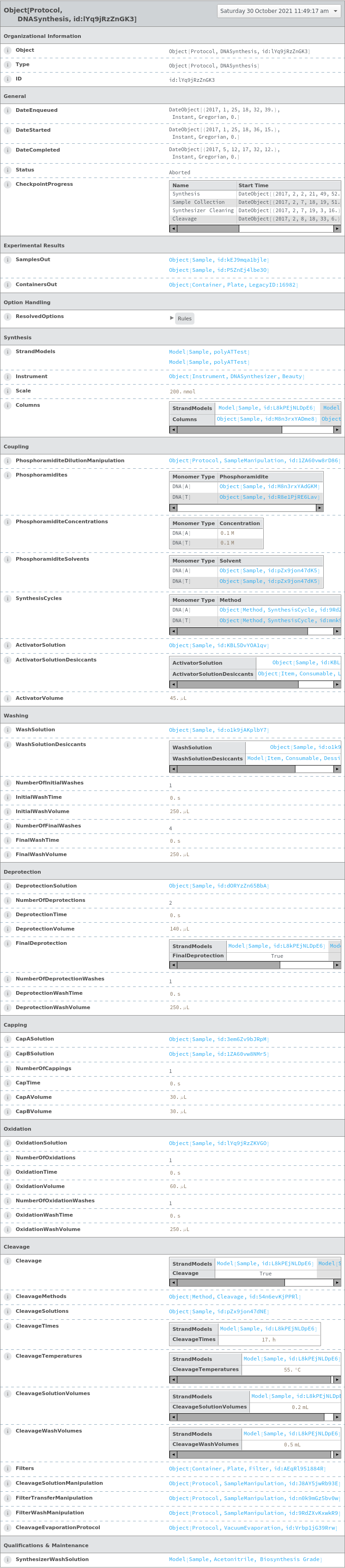

Inspect the database entry for an HPLC Protocol:

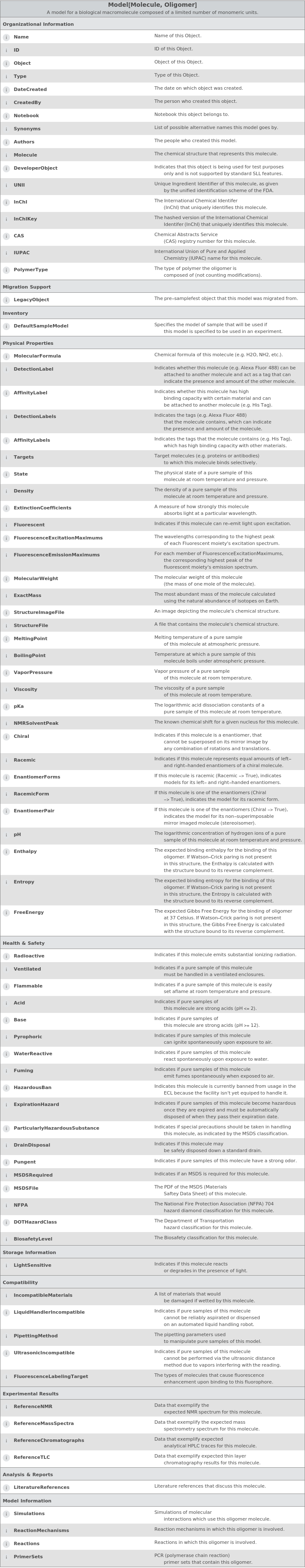

Inspect the database structure for an oligomer molecule:

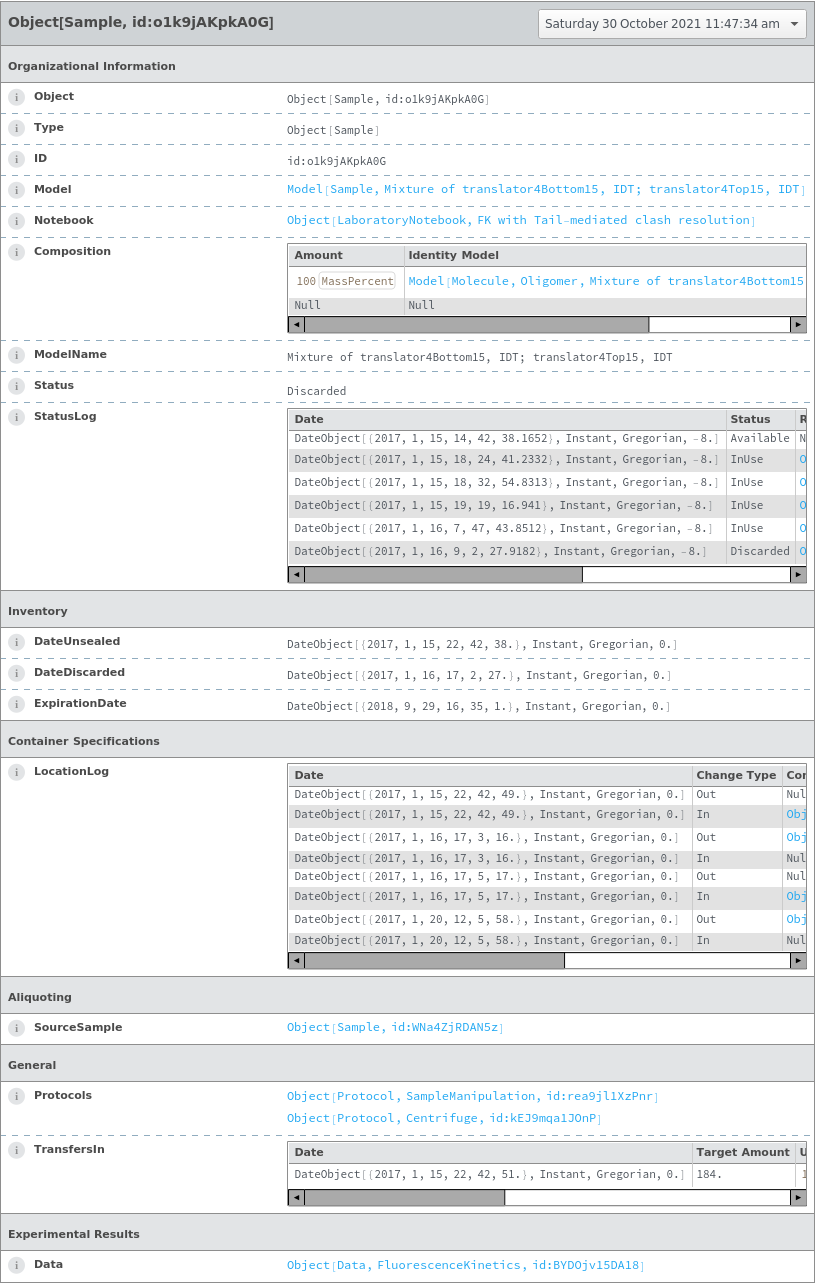

Inspect the database entry for an oligomer sample:

Additional Examples (4)

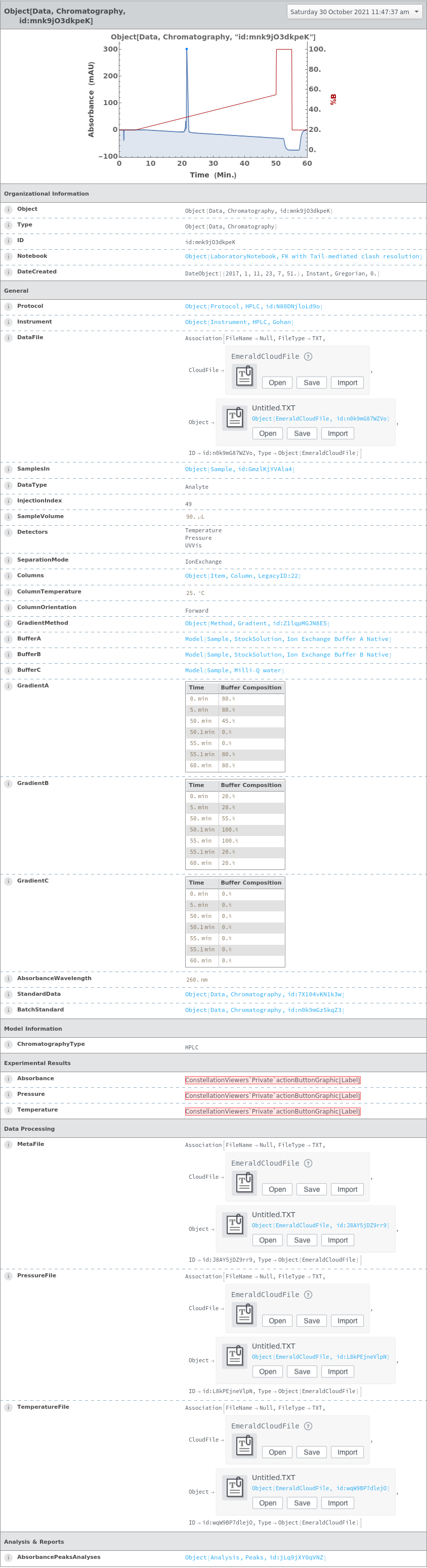

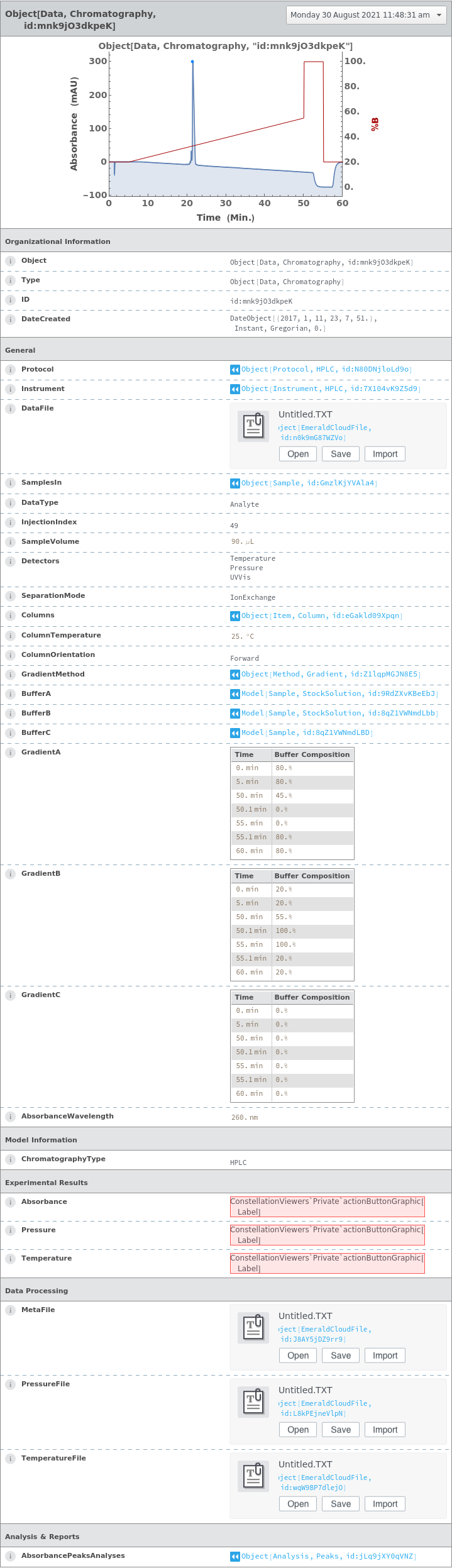

Inspect the database entry for Chromatography data:

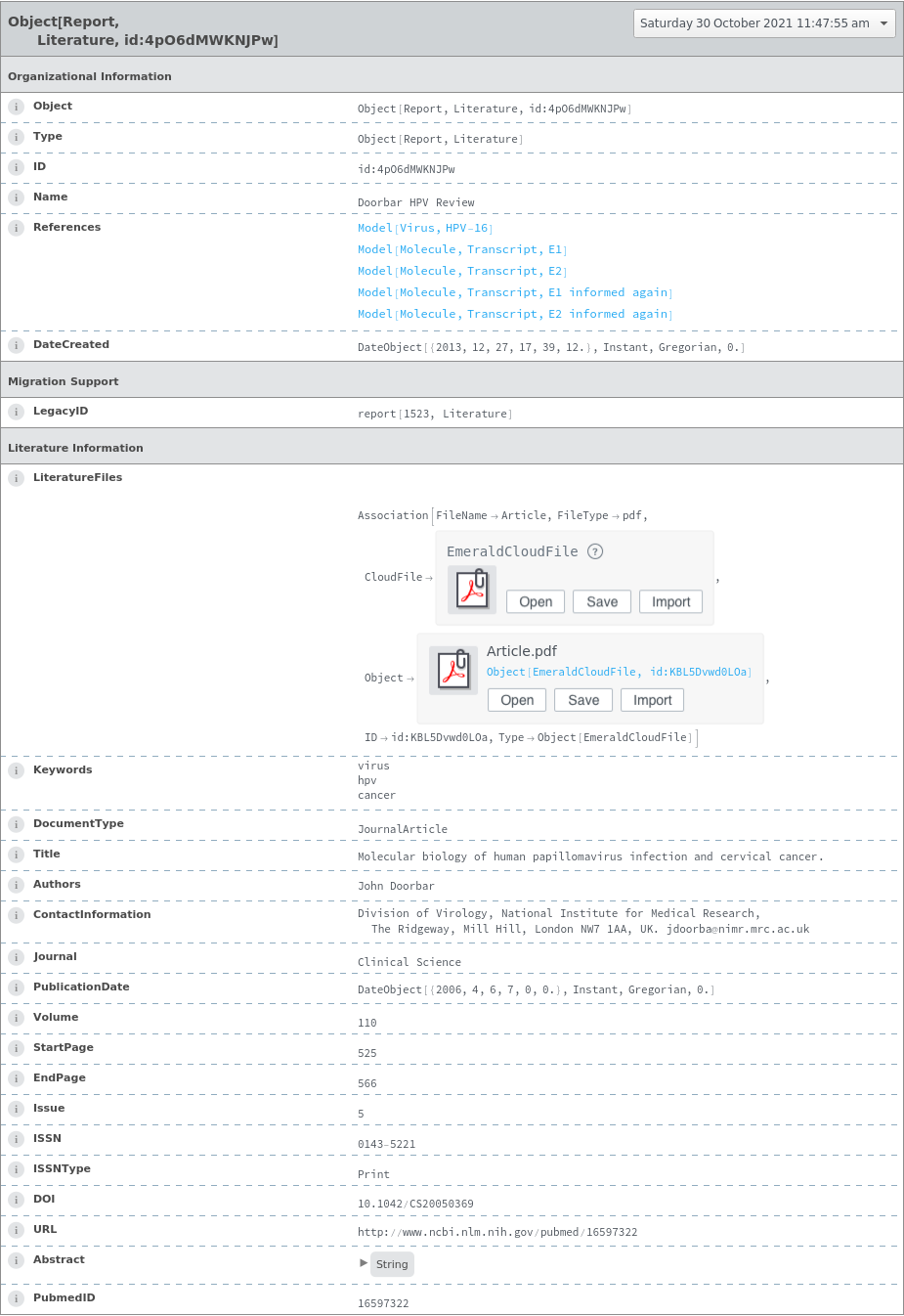

Inspect the database entry for a literature reference:

Inspect works on packets as well as objects:

As well as on Links:

Options (9)

Abstract (2)

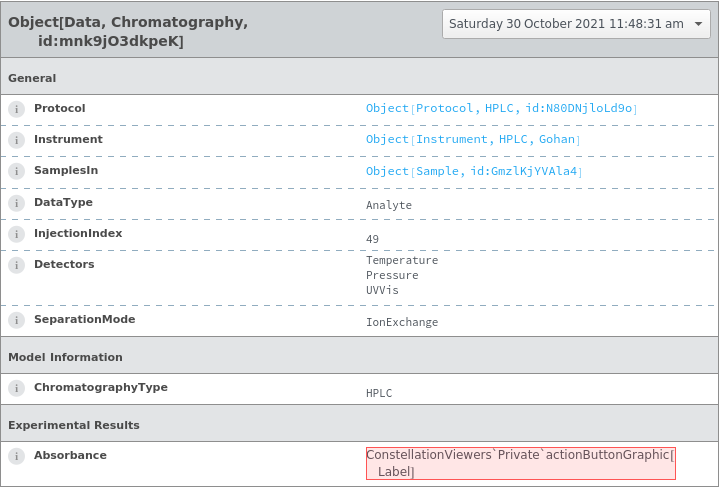

Show only the abstract fields (sans the plot) using the Abstract option:

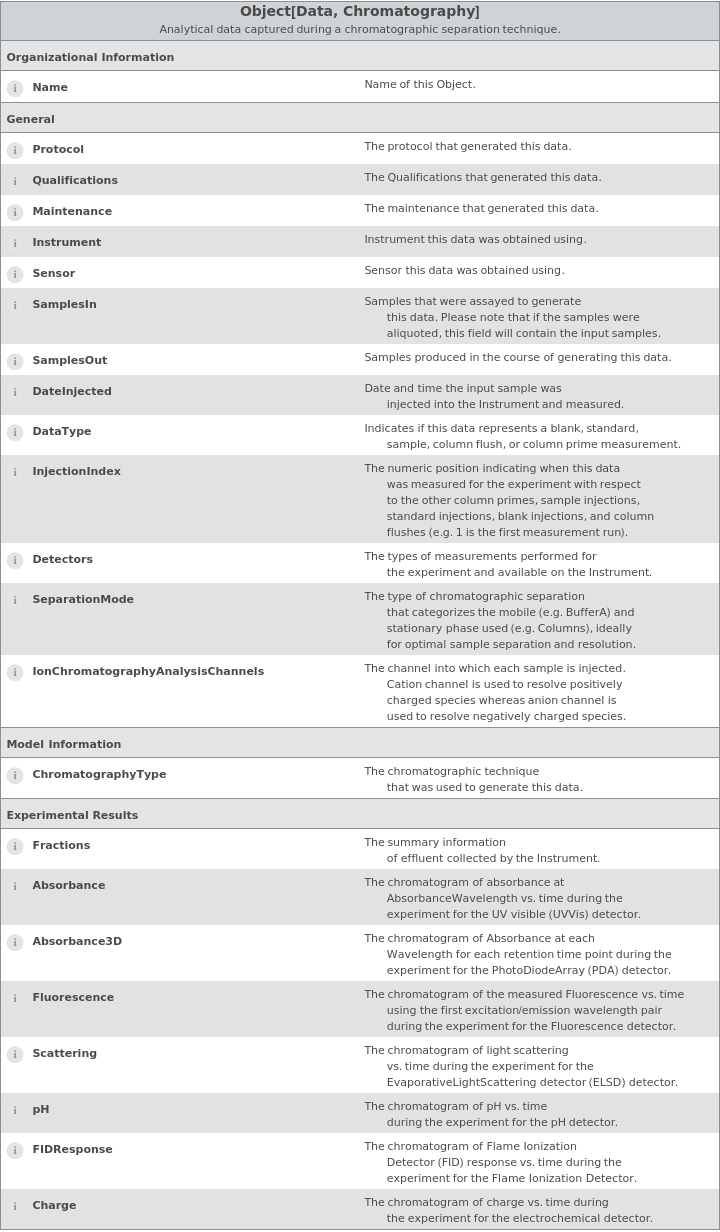

Shows only the abstract field definitions:

Date (1)

Inspect the state of the object at a specified date and time:

Developer (5)

Reveal the hidden developer fields using the developer option:

Reveal the hidden developer fields in the definitions:

Automatic developer option resolves to True when the logged in user is a Developer:

Automatic developer option resolves to False when the logged in user is not a Developer:

Automated developer option resolution is overridden by option specification:

TimeConstraint (1)

Using the TimeConstraint option will leave fields unevaluated when taking longer then the provided TimeConstraint to evaluate:

Messages (1)

TooManyObjects (1)

Fails if too many objects are passed:
