UploadColumn

UploadColumn[myInputs]⟹columnModel

creates/updates a model columnModel that contains the information given about the column.

UploadColumn[myColumnName]⟹columnModel

returns a new model columnModel that contains the information given about the column.

UploadColumn[myColumnObject]⟹columnModel

updates an existing model columnModel that contains the information given about the column.

Details

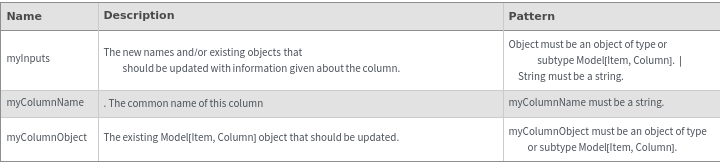

Input

Output

Compatibility Options

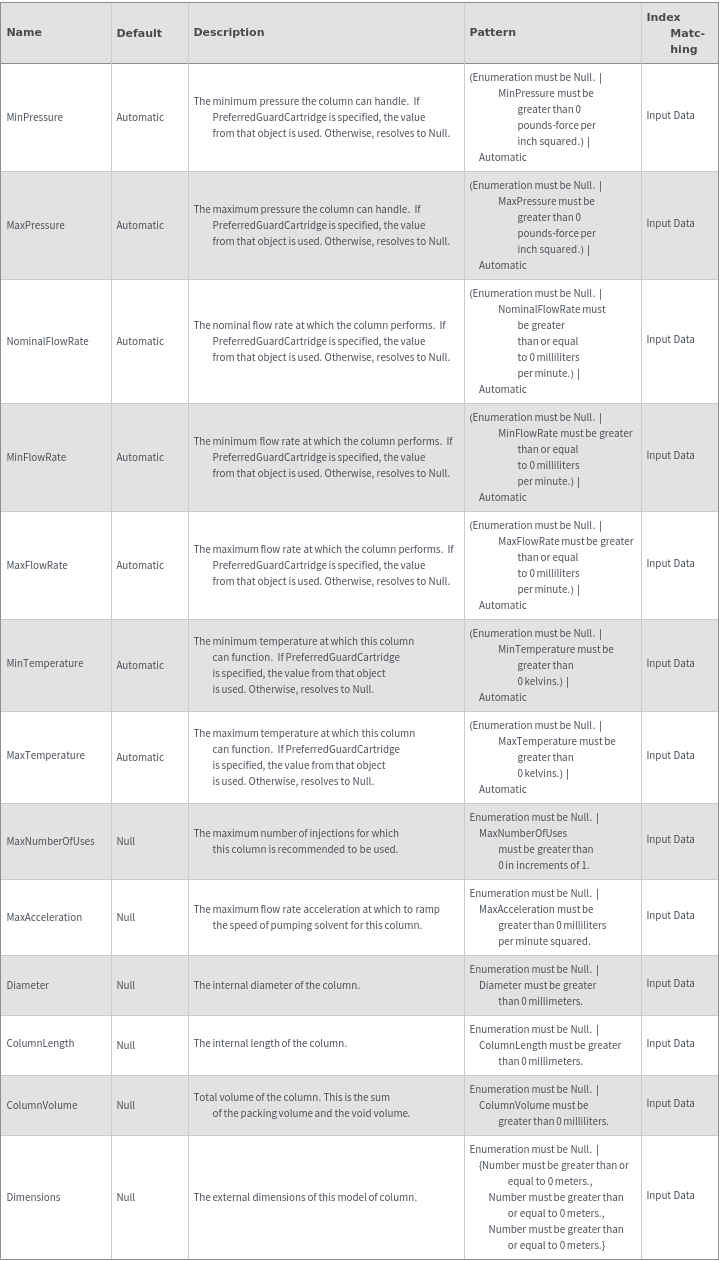

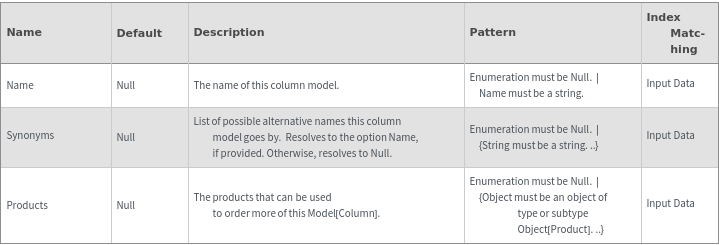

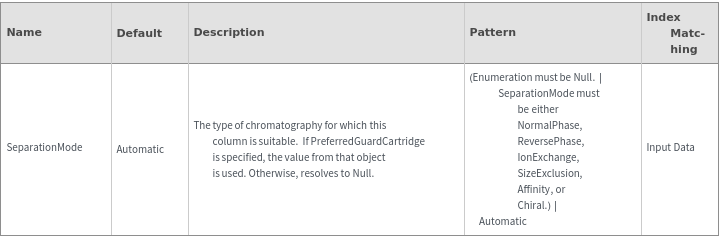

Model Information Options

Operating Limits Options

Organizational Information Options

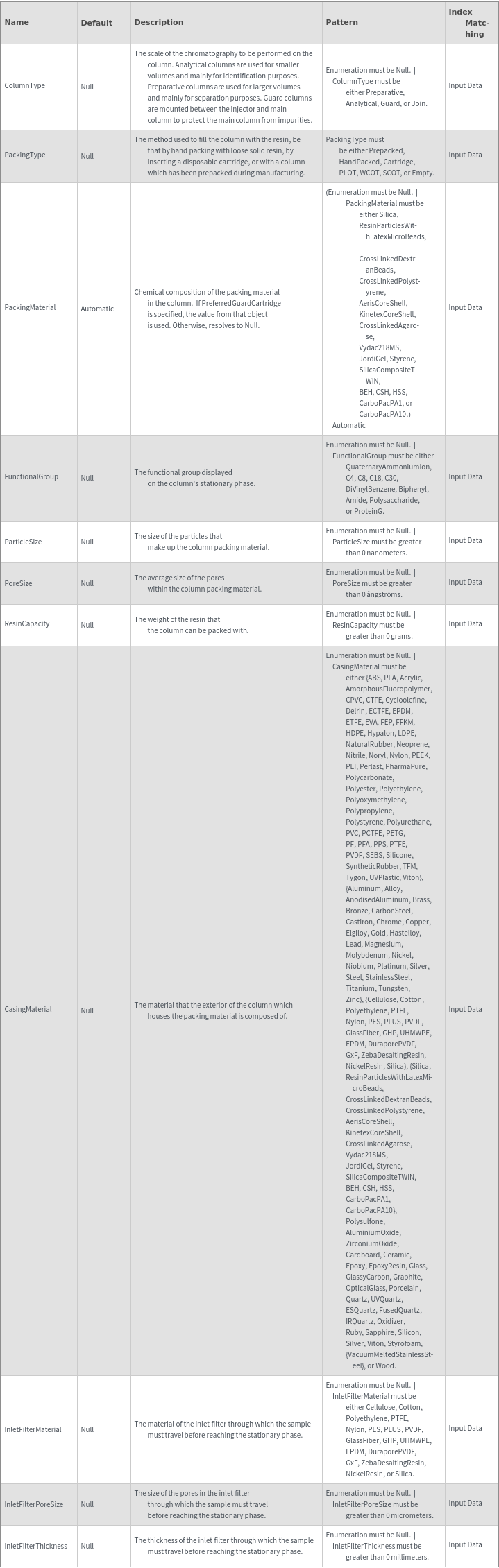

Physical Properties Options

Storage Information Options

Examples

Basic Examples (1)

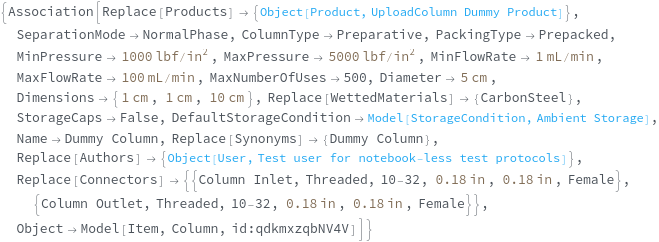

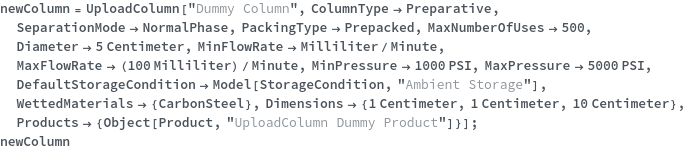

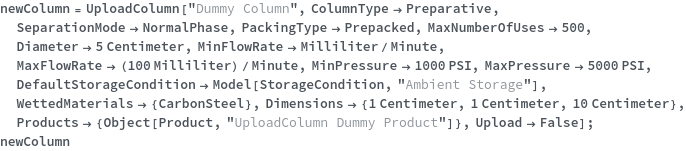

The basic example:

Options (37)

CasingMaterial (1)

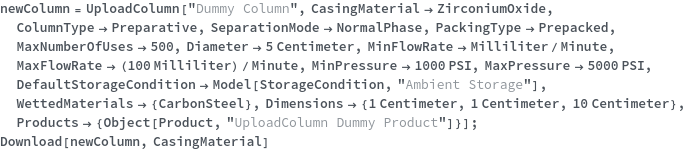

CasingMaterial allows specification of the material that the exterior of the column which houses the packing material is composed of:

ColumnLength (1)

ColumnLength allows specification of internal length of the column:

ColumnType (1)

ColumnType allows specification of the scale of the chromatography to be performed on the column:

ColumnVolume (1)

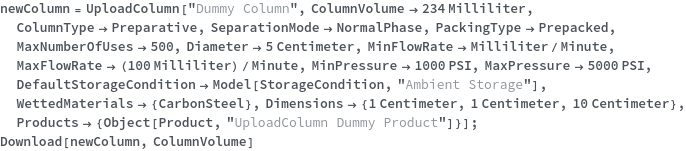

ColumnVolume allows specification of the total volume of the column. This is the sum of the packing volume and the void volume:

ConnectorType (1)

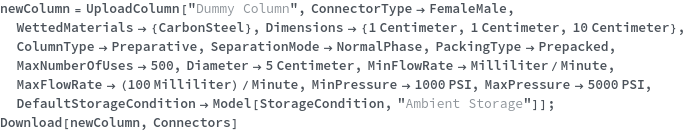

ConnectorType allows specification of how the column is connected into the flow path:

DefaultStorageCondition (1)

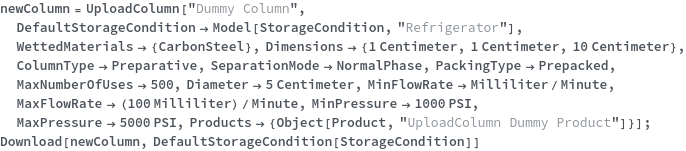

DefaultStorageCondition allows specification of the condition in which this model columns are stored when not in use by an experiment:

Diameter (1)

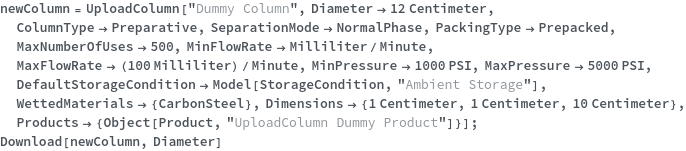

Diameter allows specification of internal diameter of the column:

Dimensions (1)

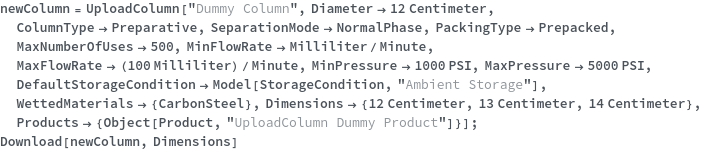

Dimensions allows specification of the external dimensions of this model of column:

FunctionalGroup (1)

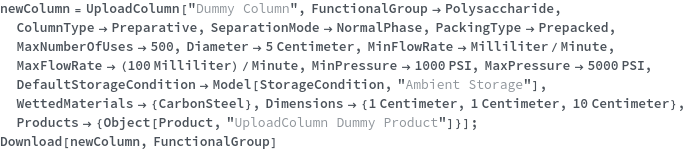

FunctionalGroup allows specification of the functional group displayed on the column's stationary phase:

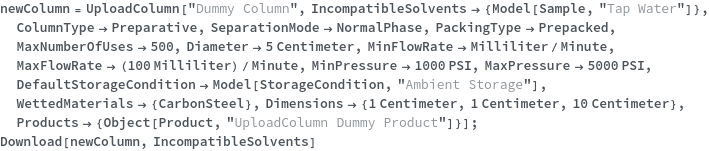

IncompatibleSolvents (1)

IncompatibleSolvents allows specification of chemicals that are incompatible for use with this column :

InletFilterMaterial (1)

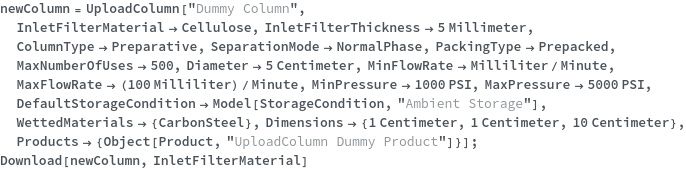

InletFilterMaterial allows specification of the material of the inlet filter through which the sample must travel before reaching the stationary phase:

InletFilterPoreSize (1)

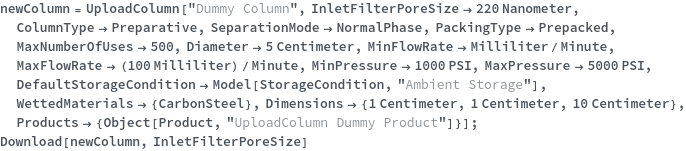

InletFilterPoreSize allows specification of the size of the pores in the inlet filter through which the sample must travel before reaching the stationary phase:

InletFilterThickness (1)

InletFilterThickness allows specification of the thickness of the inlet filter through which the sample must travel before reaching the stationary phase:

MaxAcceleration (1)

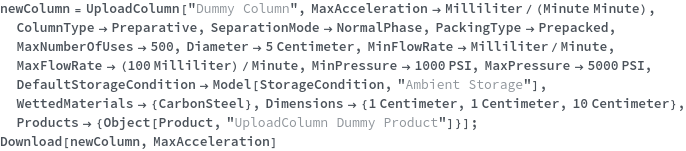

MaxAcceleration allows specification of the maximum flow rate acceleration at which to ramp the speed of pumping solvent for this column:

MaxFlowRate (1)

MaxFlowRate allows specification of the maximum flow rate at which the column performs:

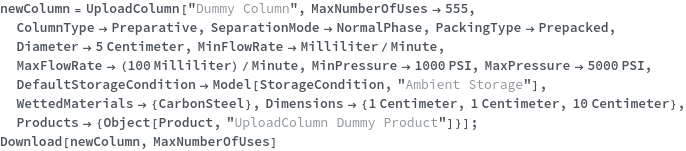

MaxNumberOfUses (1)

MaxNumberOfUses allows specification of the maximum number of injections for which this column is recommended to be used:

MaxpH (1)

MaxpH allows specification of the maximum pH the column can handle:

MaxPressure (1)

MaxPressure allows specification of the maximum pressure the column can handle:

MaxTemperature (1)

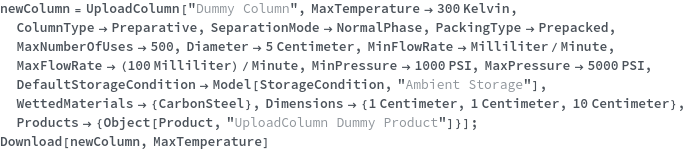

MaxTemperature allows specification of the maximum temperature at which this column can function:

MinFlowRate (1)

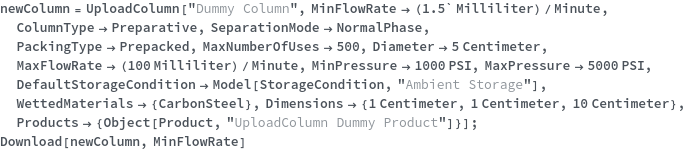

MinFlowRate allows specification of the minimum flow rate at which the column performs:

MinpH (1)

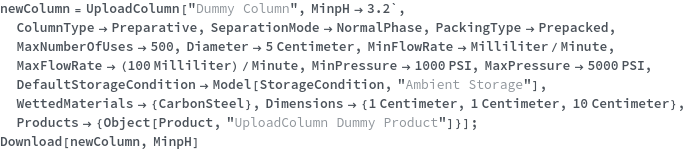

MinpH allows specification of the minimum pH the column can handle:

MinPressure (1)

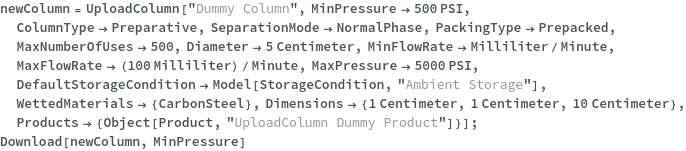

MinPressure allows specification of the minimum pressure the column can handle.:

MinTemperature (1)

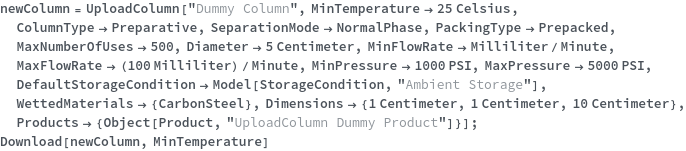

MinTemperature allows specification of the minimum temperature at which this column can function:

Name (1)

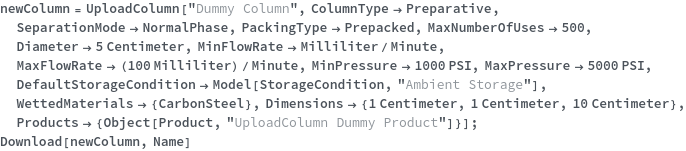

Name allows specification of the name of this column model:

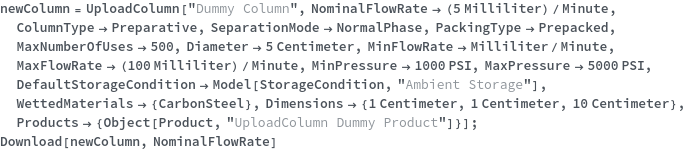

NominalFlowRate (1)

NominalFlowRate allows specification of the nominal flow rate at which the column performs:

PackingMaterial (1)

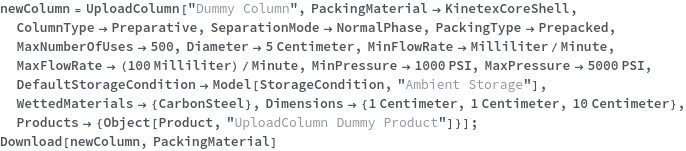

PackingMaterial allows specification of the chemical composition of the packing material in the column:

PackingType (1)

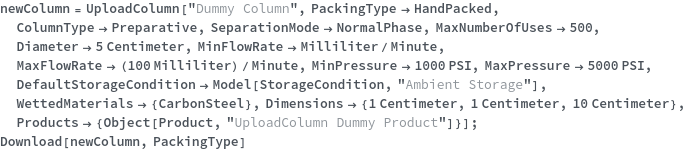

PackingType allows specification of the method used to fill the column with the resin, be that by hand packing with loose solid resin, by inserting a disposable cartridge, or with a column which has been prepacked during manufacturing:

ParticleSize (1)

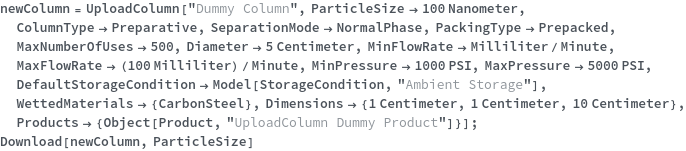

ParticleSize allows specification of the size of the particles that make up the column packing material:

PoreSize (1)

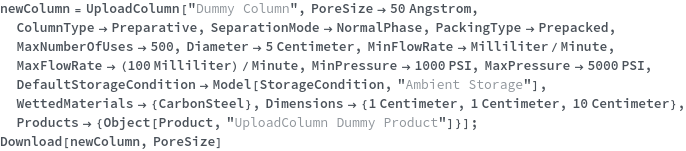

PoreSize allows specification of the average size of the pores within the column packing material:

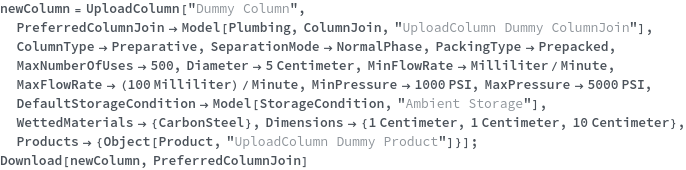

PreferredColumnJoin (1)

PreferredColumnJoin allows specification of the column join that best connects a column to this column:

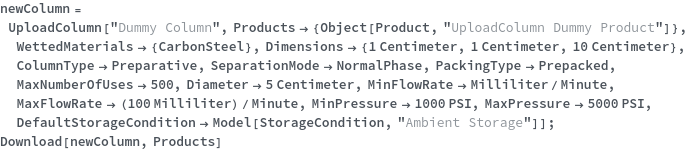

Products (1)

Products allows specification of the ordering information for this model:

ResinCapacity (1)

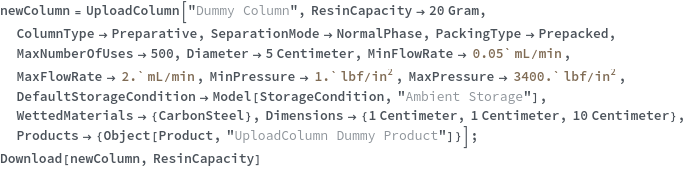

ResinCapacity allows specification of the weight of the resin that the column can be packed with:

SeparationMode (1)

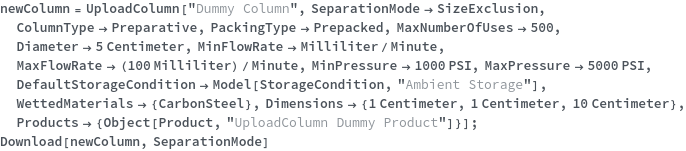

SeparationMode allows specification of type of chromatography for which this column is suitable:

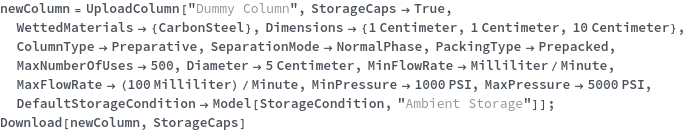

StorageCaps (1)

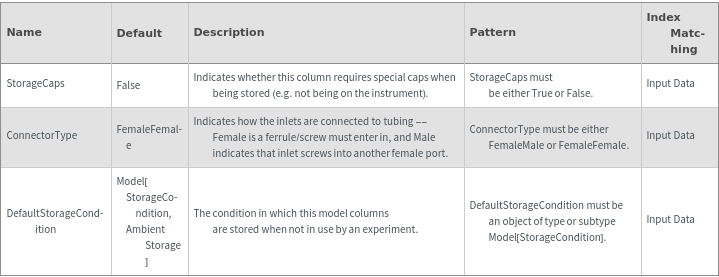

StorageCaps allows specification of whether the column has special caps needed to be placed in between installation:

Synonyms (1)

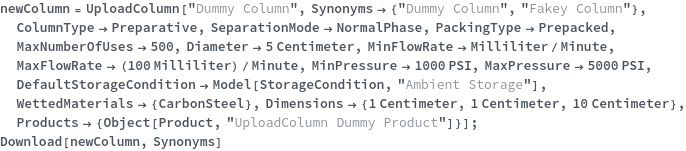

Synonyms allows specification of the list of possible alternative names this column model goes by:

Upload (1)

Upload allows the return on an unuploaded packet object:

WettedMaterials (1)

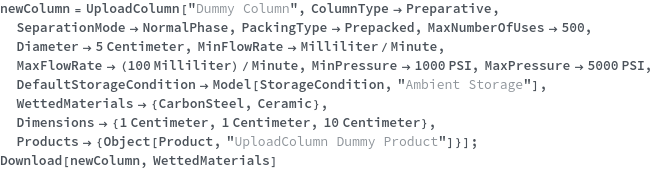

WettedMaterials allows the return on an unuploaded packet object:
