Washing

Washing[washingRules]⟹primitive

generates a solid phase synthesis primitive that describes how previous step's chemicals will be removed from resin by flowing solvent through it into waste.

Details

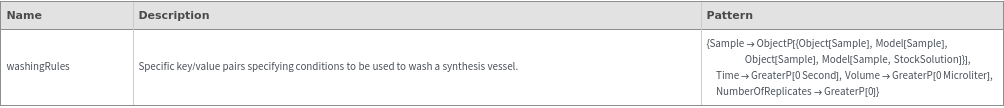

  • The following keys can be used as inputs to the primitive:
  • Key
    Value Pattern
    Description
    SampleObjectP[{Object[Sample],Model[Sample]}]The solution which will be used to perform the wash.
    TimeGreaterP[0 Second]The amount of time for which the wash solution will be mixed with the resin.
    VolumeGreaterP[0 Microliter]The volume of wash solution used.
    NumberOfReplicatesGreaterP[0]Number of times the wash step will be repeated.
    • Input
    Output
    Attributes
  • Protected

Examples

Basic Examples  (3)

Create a primitve to wash the resin during the synthesis:

The sample provided to the primitive must have a liquid state:

Sample, Time, Volume and NumberOfReplicates keys are all required:

Attributes  (1)

Protected  (1)

The Washing Head is protected:
