PlotDynamicFoamAnalysis

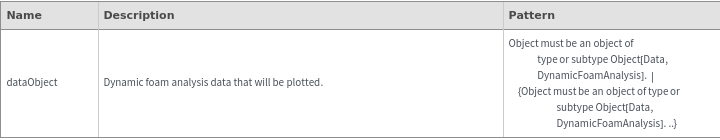

PlotDynamicFoamAnalysis[dataObject]plot

displays plot of the collected foam data from the supplied dataObject, including the foam/liquid height and volume over time, the bubble count and bubble size over time, and the foam liquid content over time at each liquid conductivity module sensor.

Details

    Input
    Output

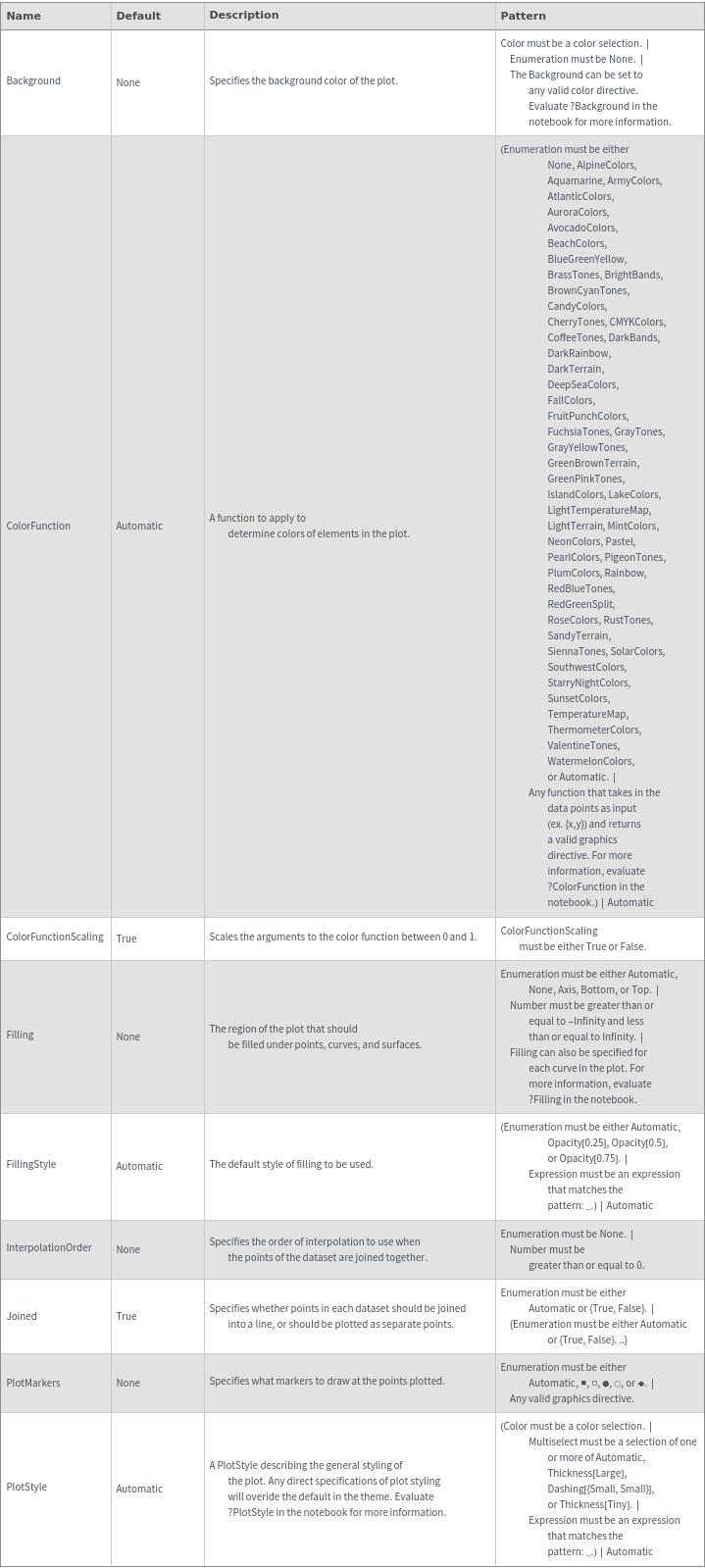

    Data Specifications Options

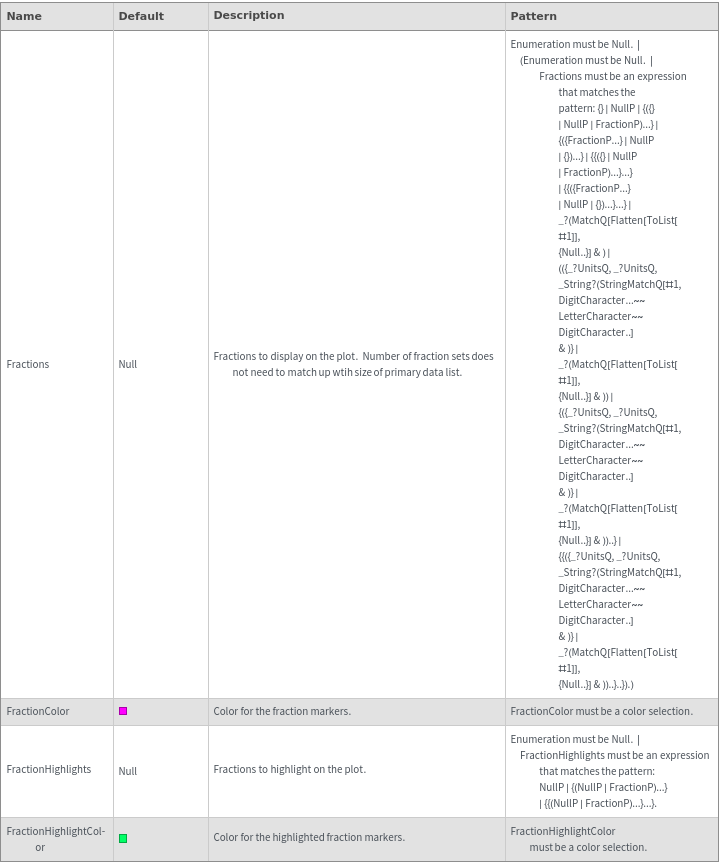

    Fractions Options

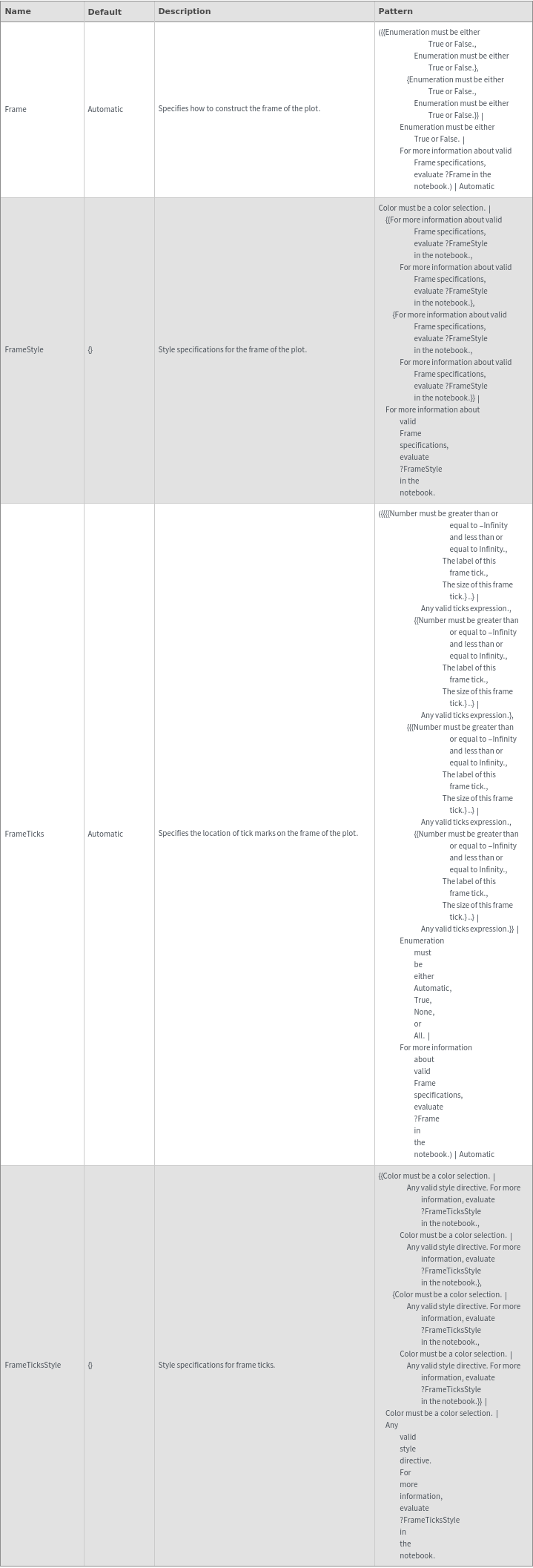

    Frame Options

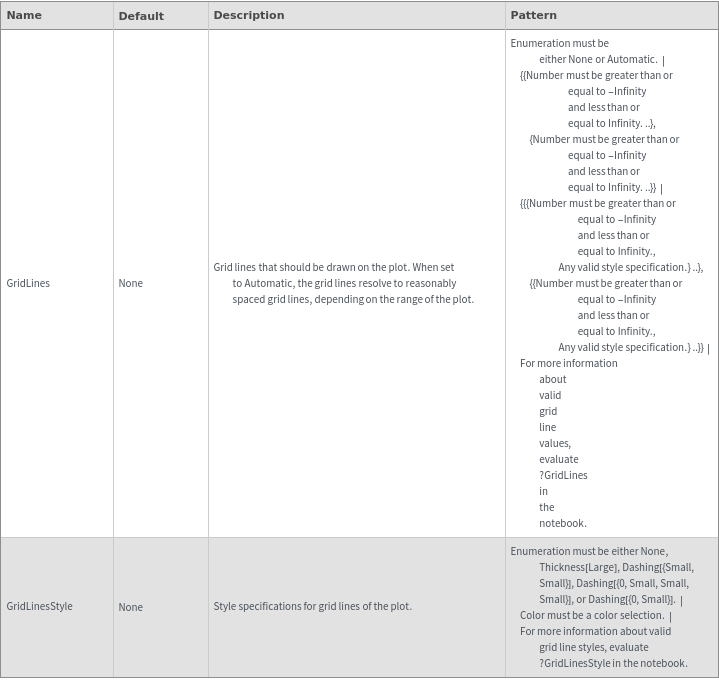

    Grid Options

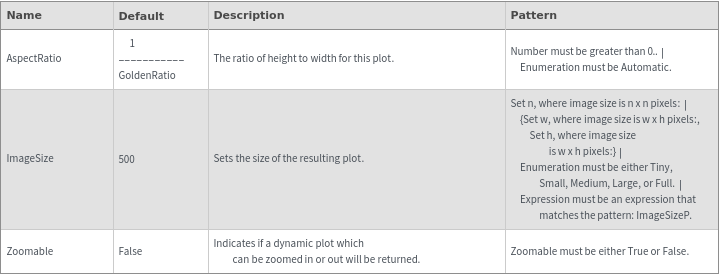

    Image Format Options

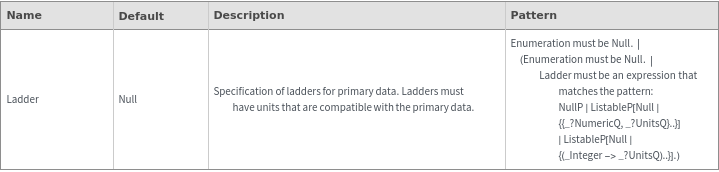

    Ladder Options

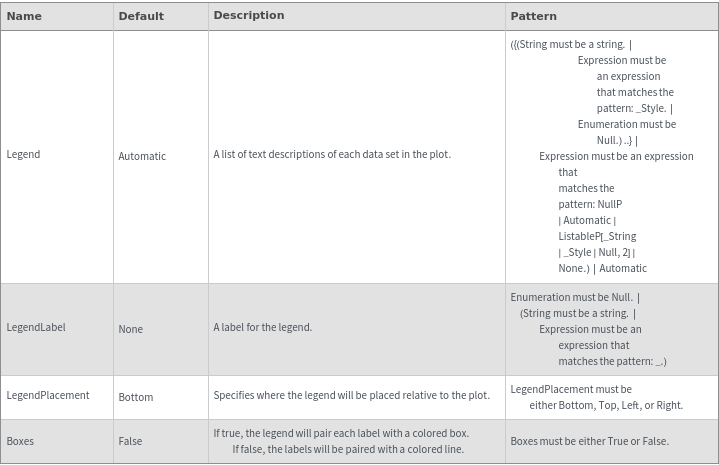

    Legend Options

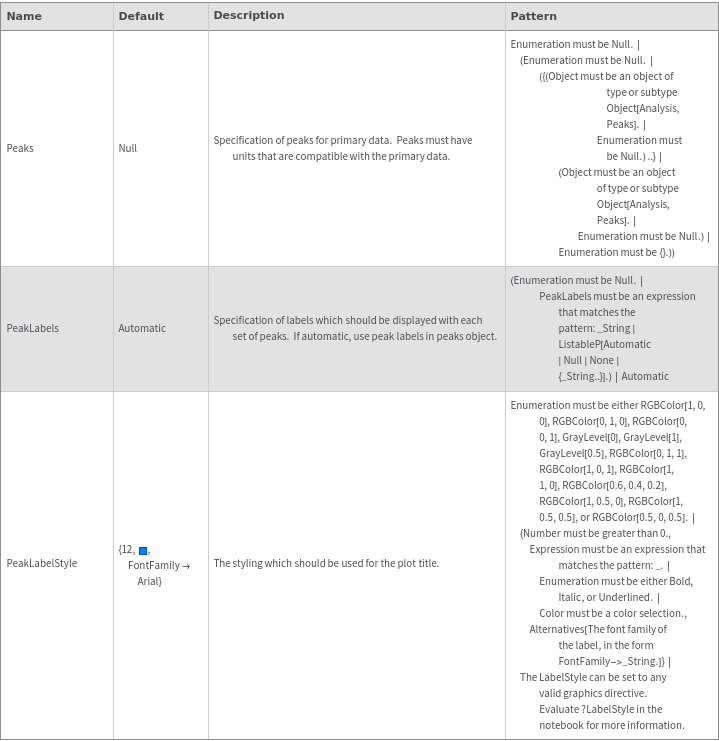

    Peaks Options
    Plot Labeling Options

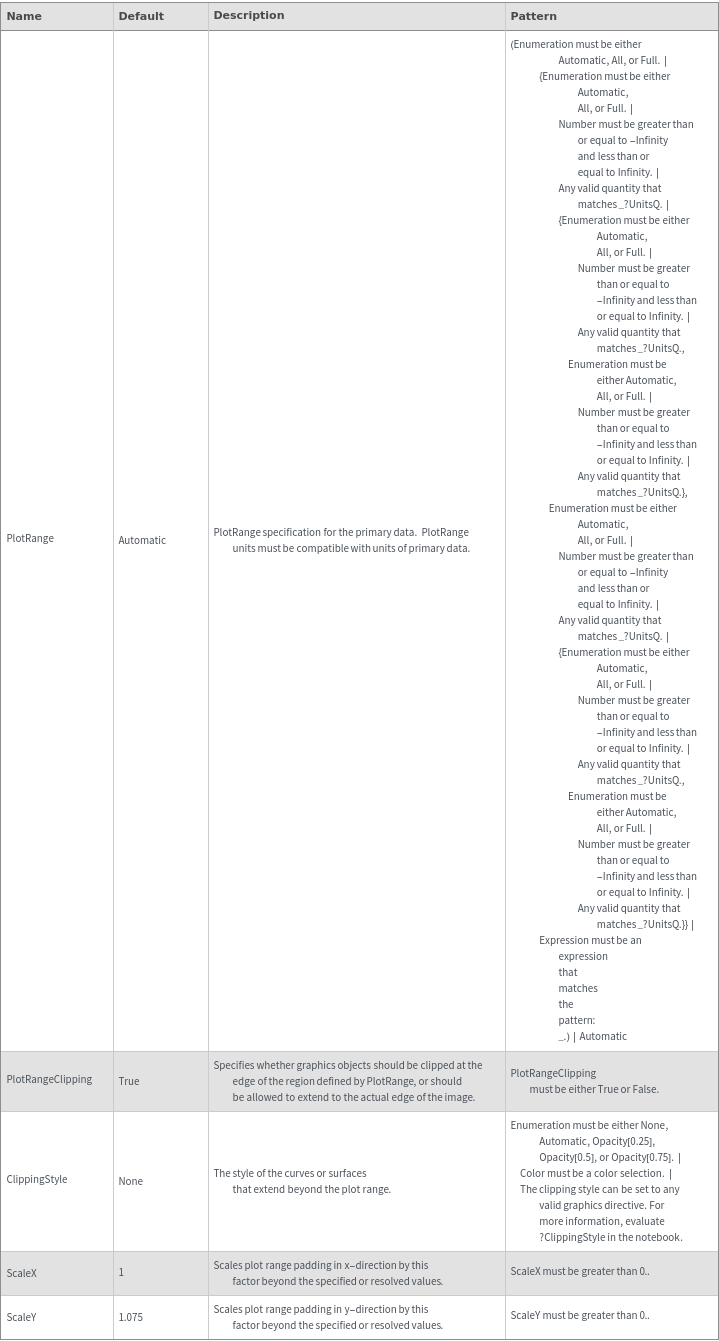

    Plot Range Options
    Plot Style Options

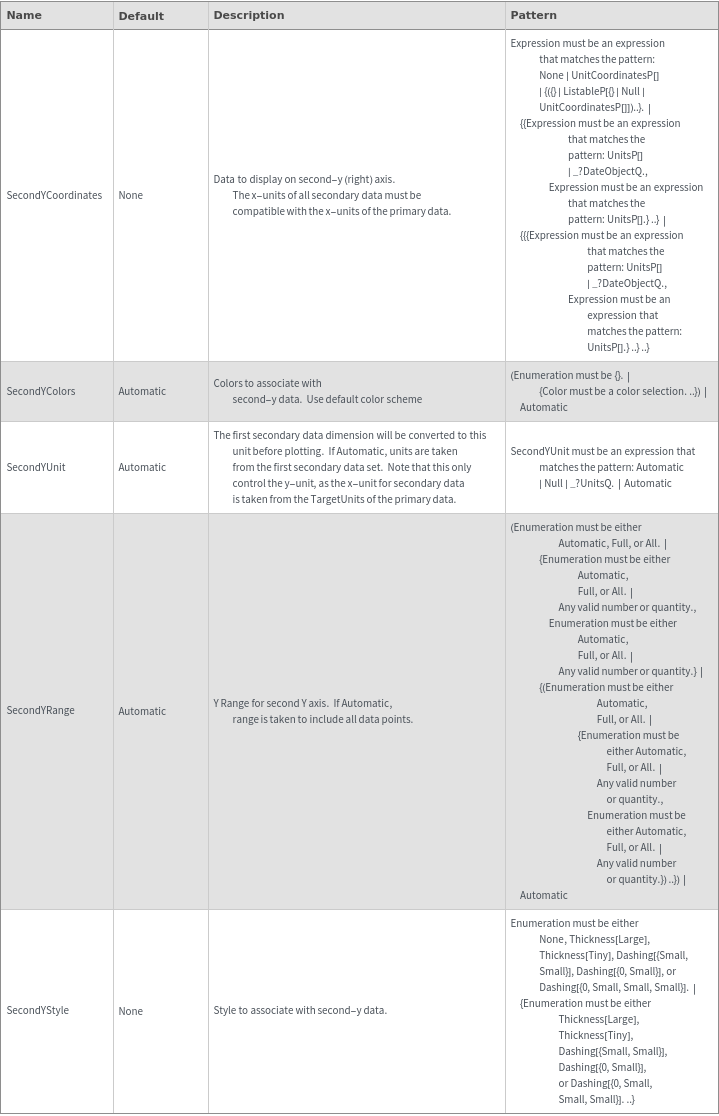

    Secondary Data Options

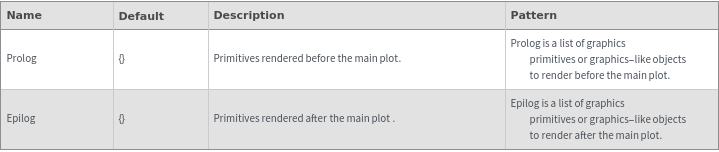

    General Options

Examples

Basic Examples  (2)

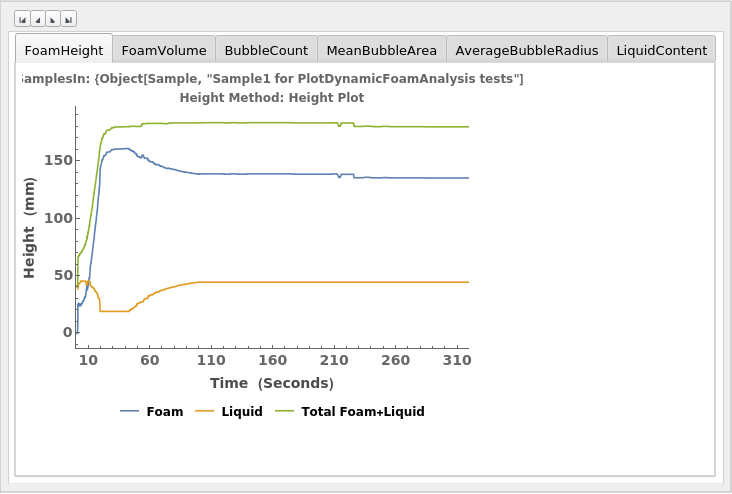

Given a DynamicFoamAnalysis data object, creates all possible plots related to the DetectionMethod:

Given multiple DynamicFoamAnalysis data objects, creates all possible plots related to the DetectionMethod):

Options  (1)

PlotType  (1)

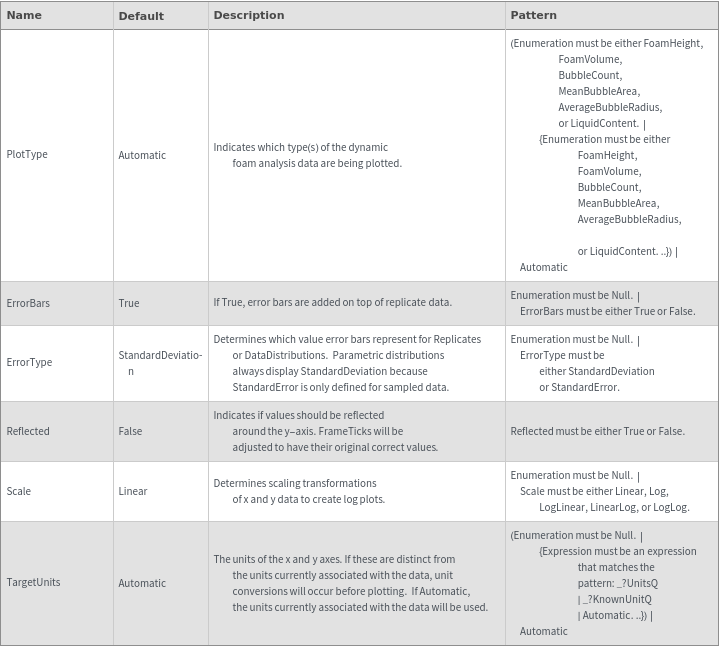

Given a DynamicFoamAnalysis protocol object, use PlotType to specify which plots to generate:

Messages  (1)

NoDataForPlotDynamicFoamAnalysisPlotType  (1)

An error will be shown if the specified DynamicFoamAnalysis data object does not have data for a specified plot type:
