PlotFractions

PlotFractions[fractions]plot

plots a Chromatogram with fraction epilogs.

Details

  • PlotFractions[fracsCollected, fracksPicked, fig]->plot may be used to generate and plot ladder epilogs on any figure.
  • Both fracsCollected and fracksPicked must match {FractionP...}
  • FractionP has the format {left bound, right bound, string label}.
  • Input
    Output
    Data Specifications Options

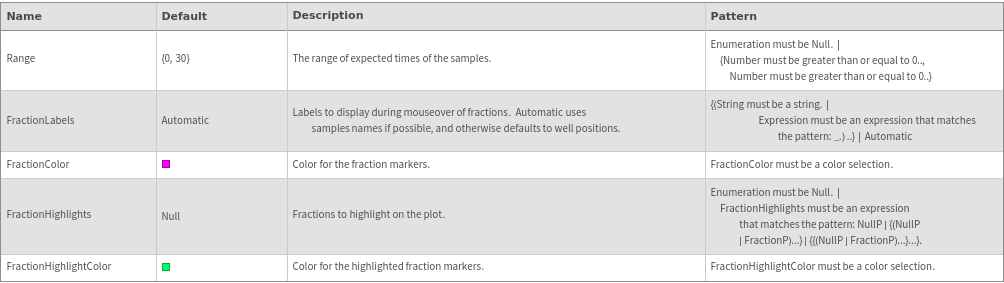

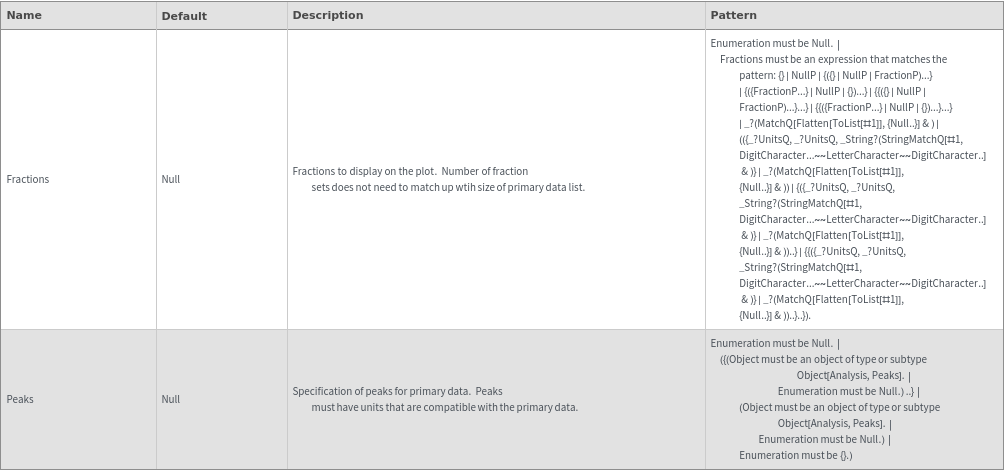

    Fractions Options

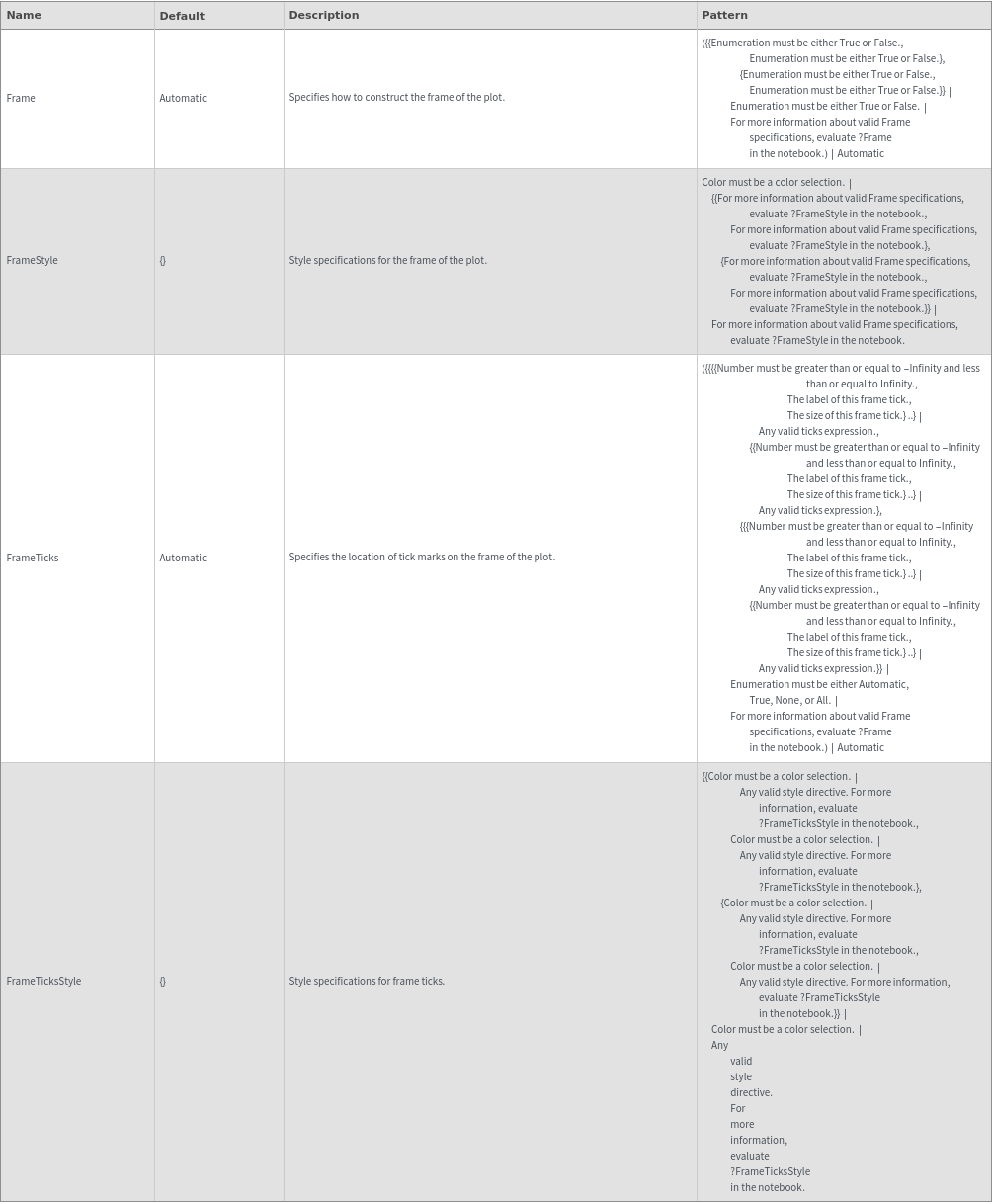

    Frame Options
    Grid Options

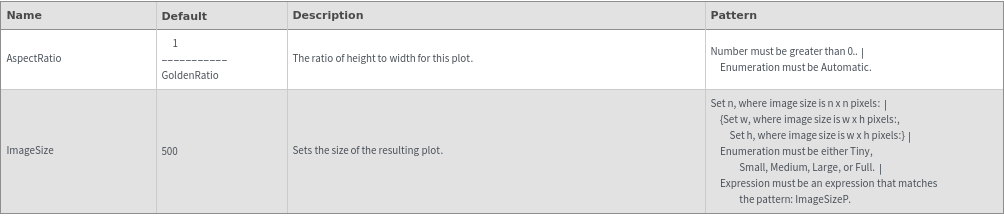

    Image Format Options

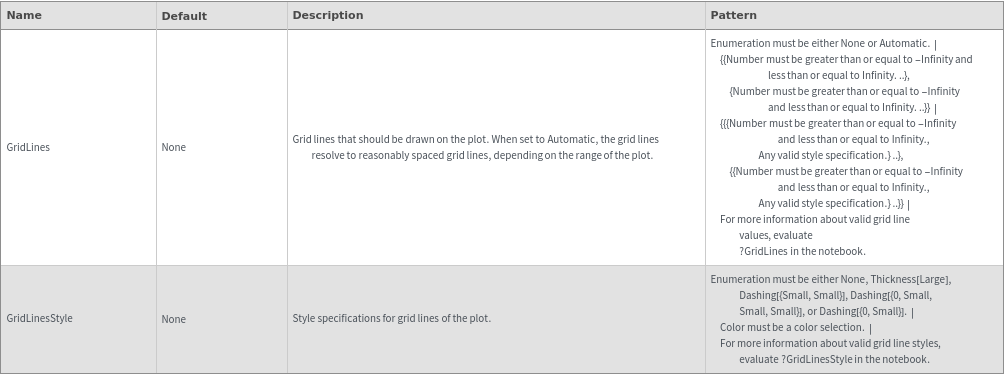

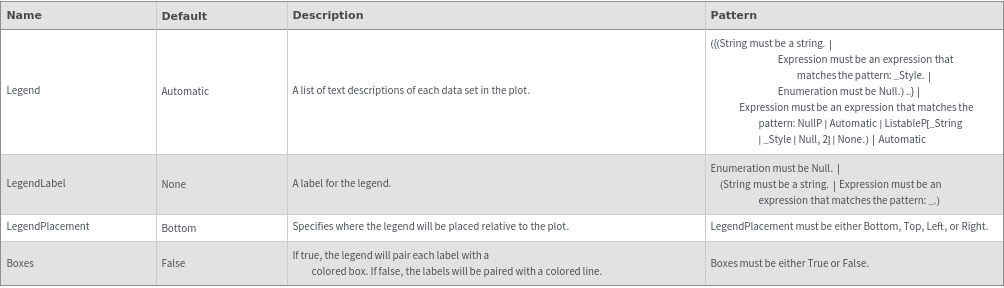

    Legend Options

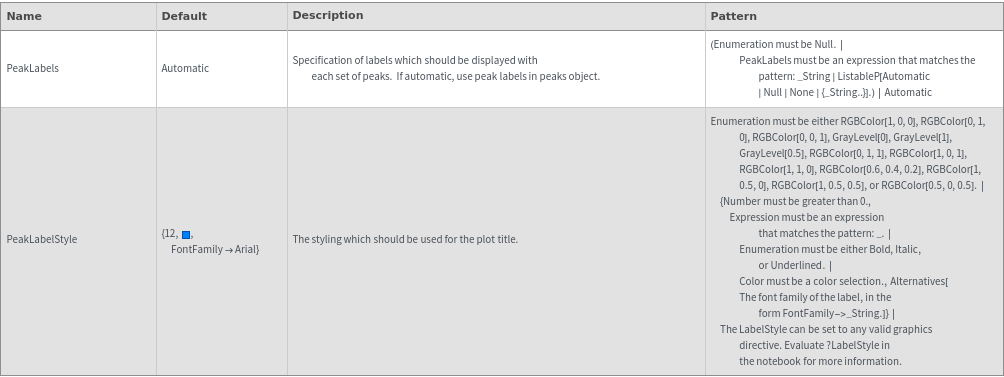

    Peaks Options

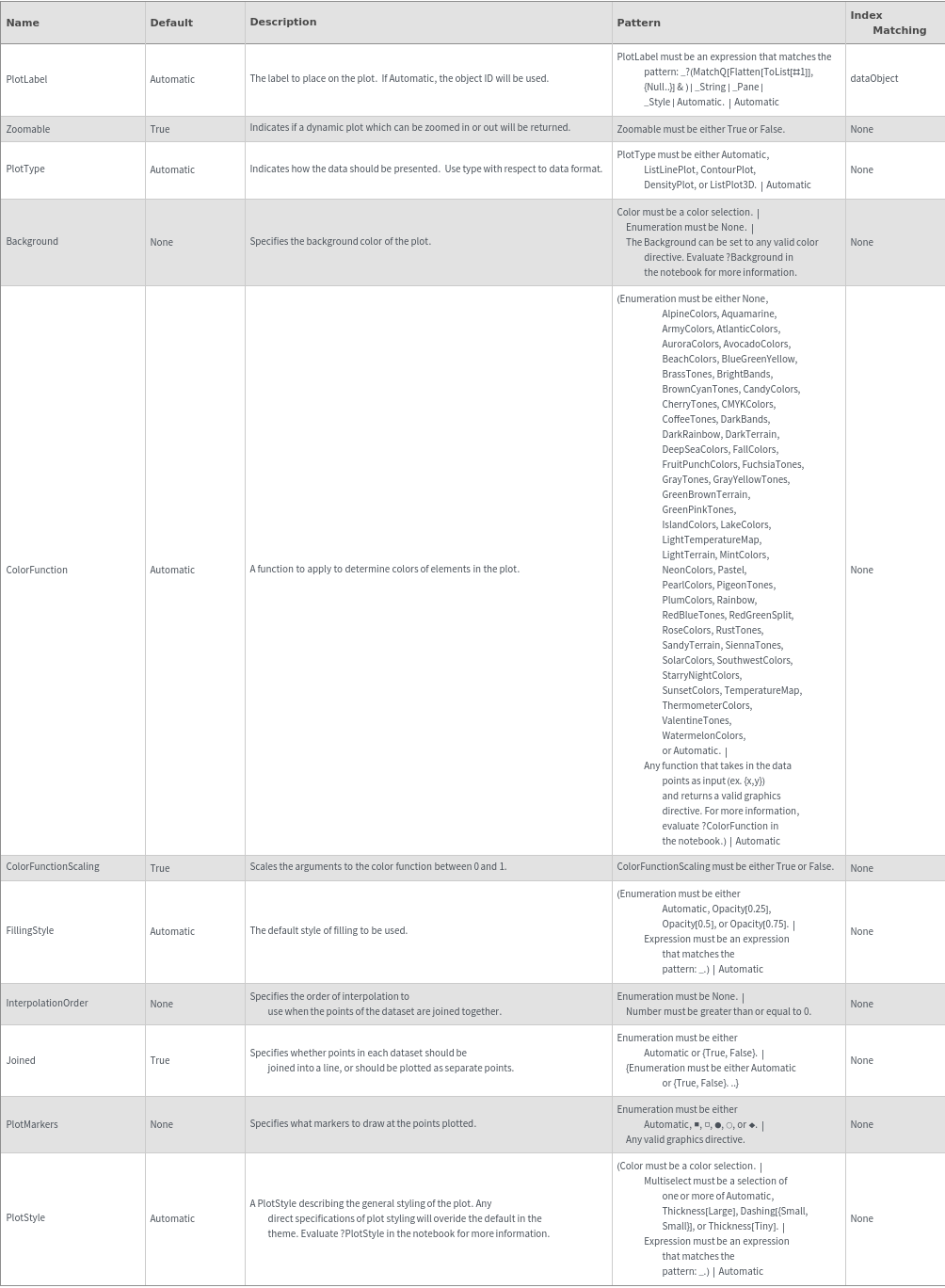

    Plot Labeling Options

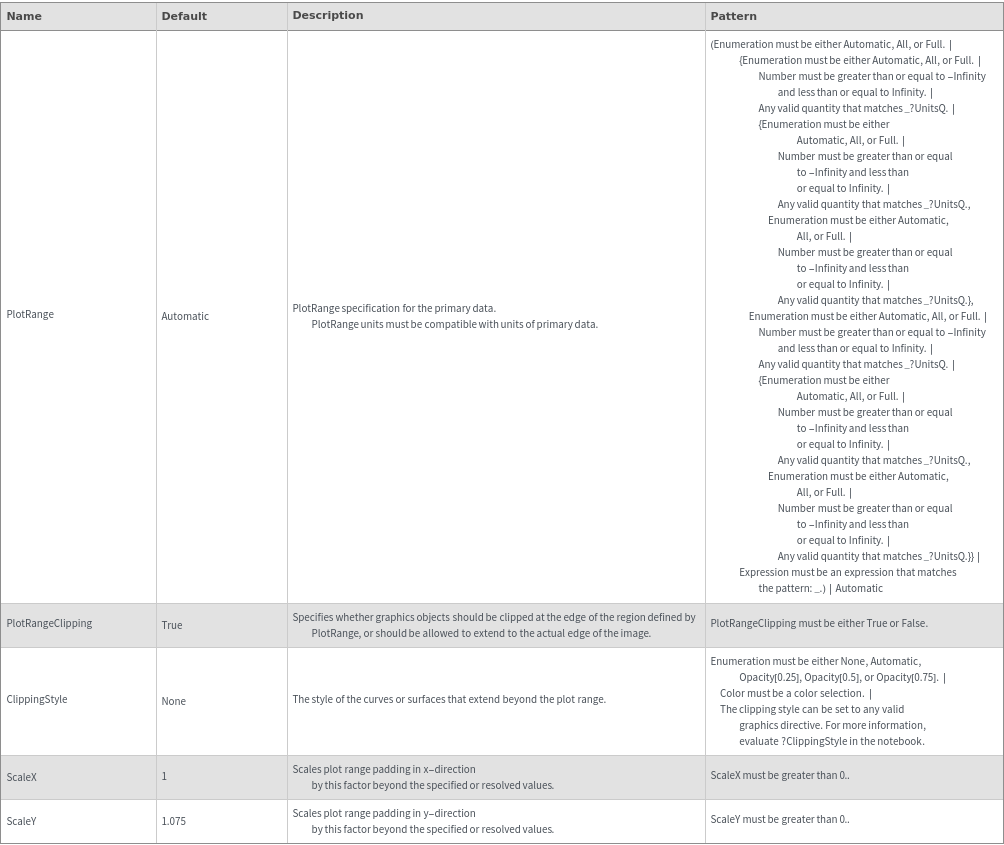

    Plot Range Options

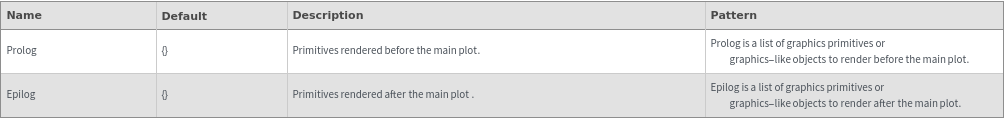

    Plot Style Options

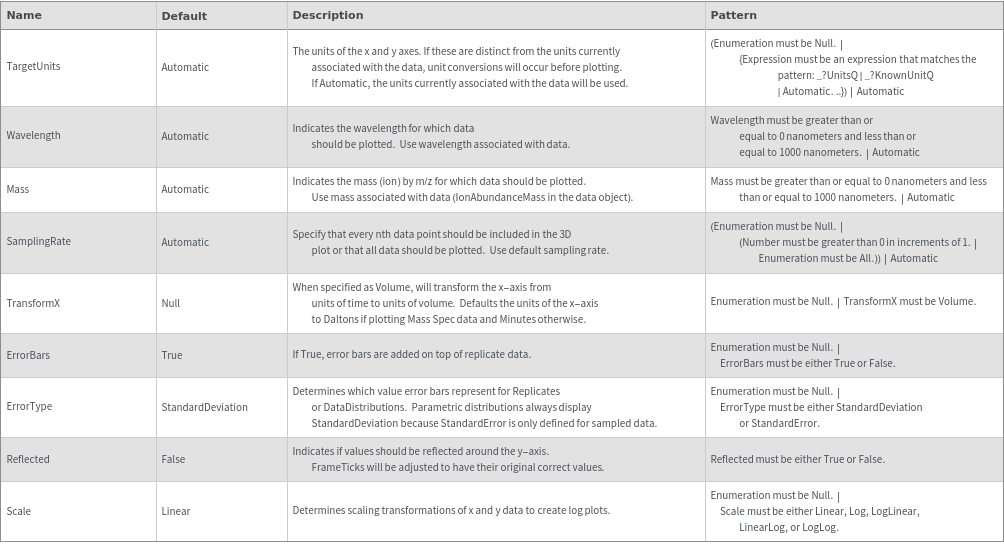

    Raw Data Options

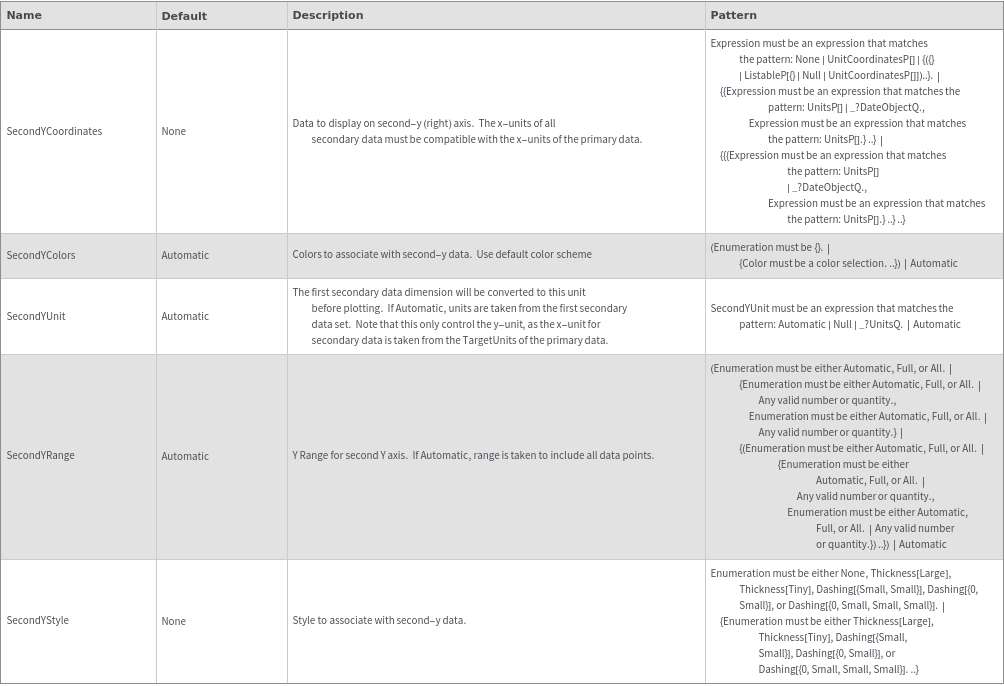

    Secondary Data Options
    General Options

Examples

Basic Examples  (4)

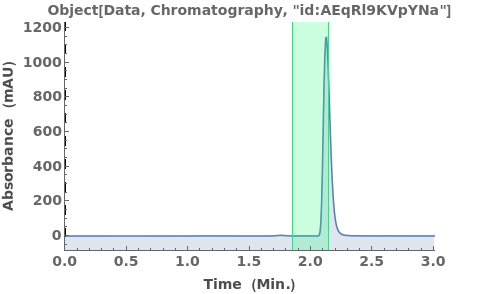

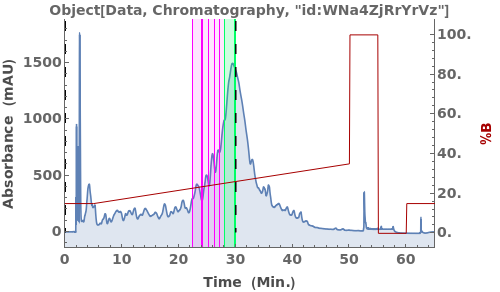

Plot fractions analysis:

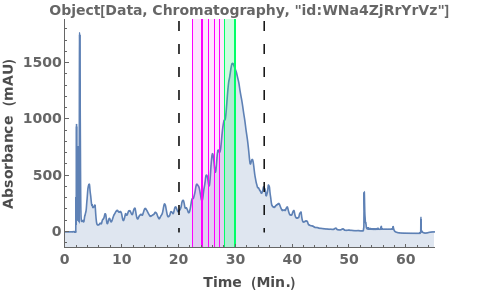

Plot fractions analysis with Fractions field:

Plot fractions analysis from a link:

FractionLabels default to well positions when no sample information available:

Options  (2)

FractionLabels  (1)

Plot fractions analysis:

Range  (1)

Specify the range of fractions samples could be in:
