ValidExperimentPNASynthesisQ

ValidExperimentPNASynthesisQ[oligomerModels]⟹boolean

checks whether the provided oligomerModels and specified options are valid for calling ExperimentPNASynthesis.

Details

  • This experiment function is used to create PNA oligomer strands from an oligomer model object.
  • The maximum number of strands that can be synthesized in a single run is 12.

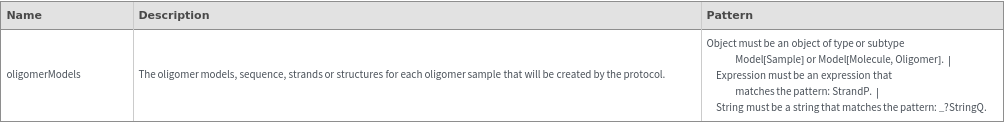

    • Input
    Output

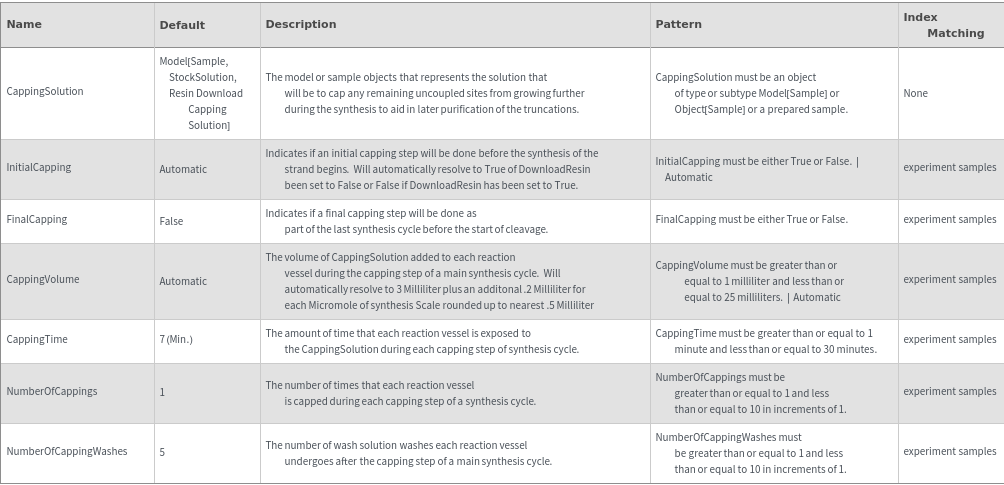

    Capping Options

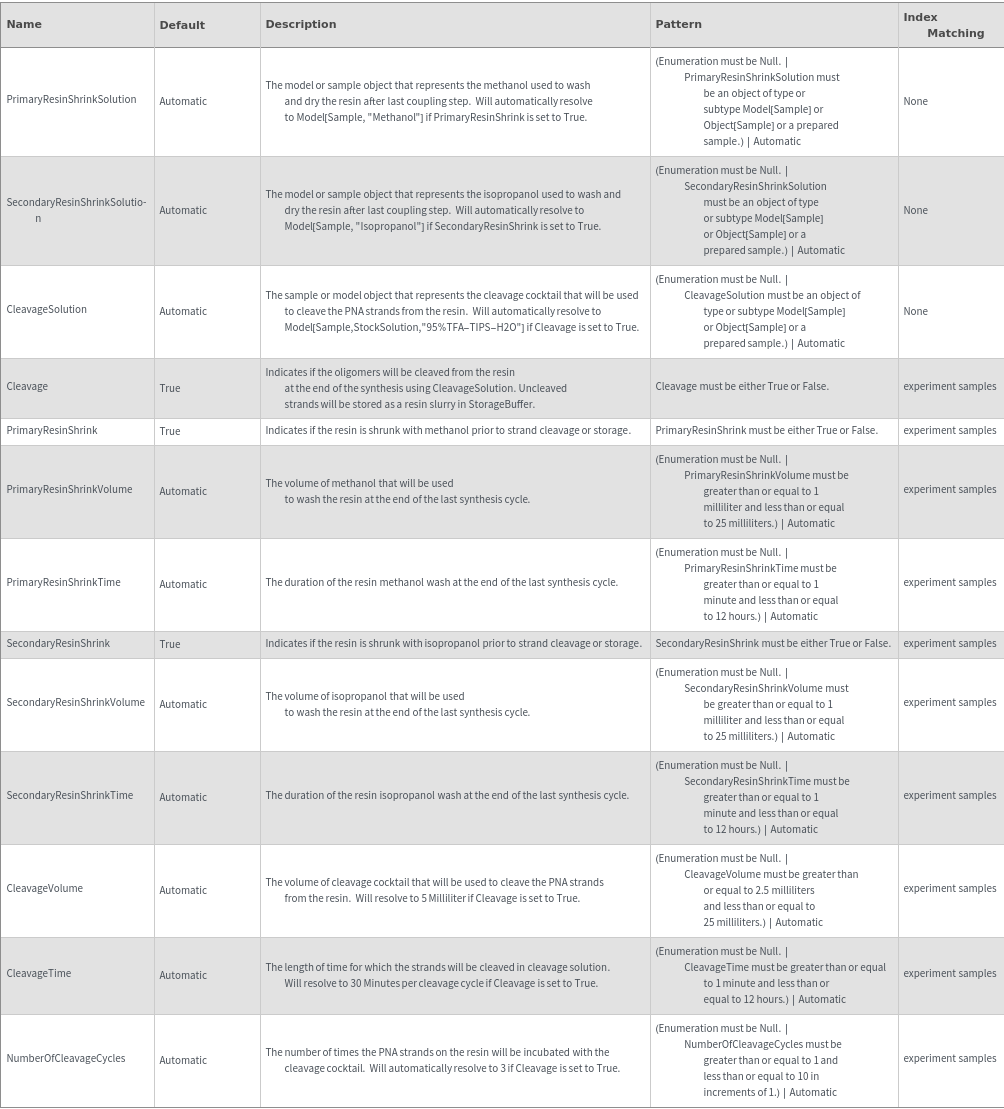

    Cleavage Options

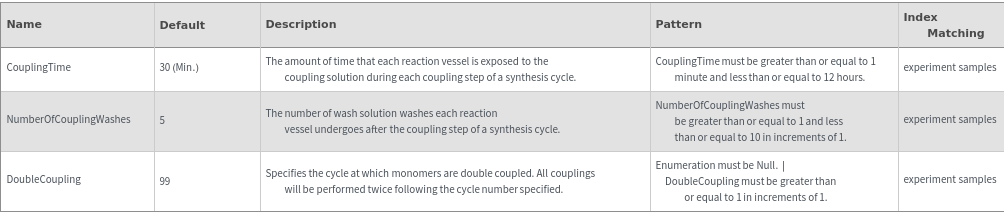

    Coupling Options

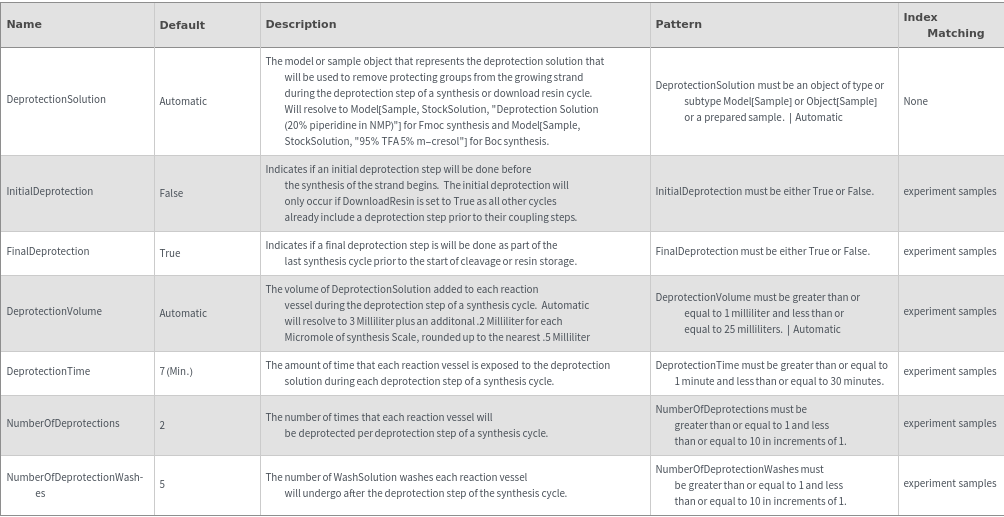

    Deprotection Options

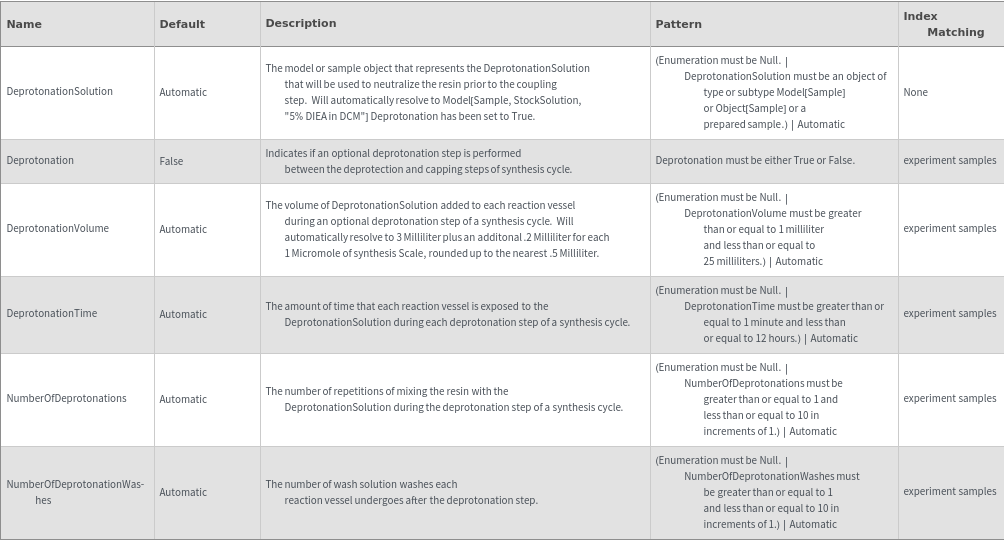

    Deprotonation Options

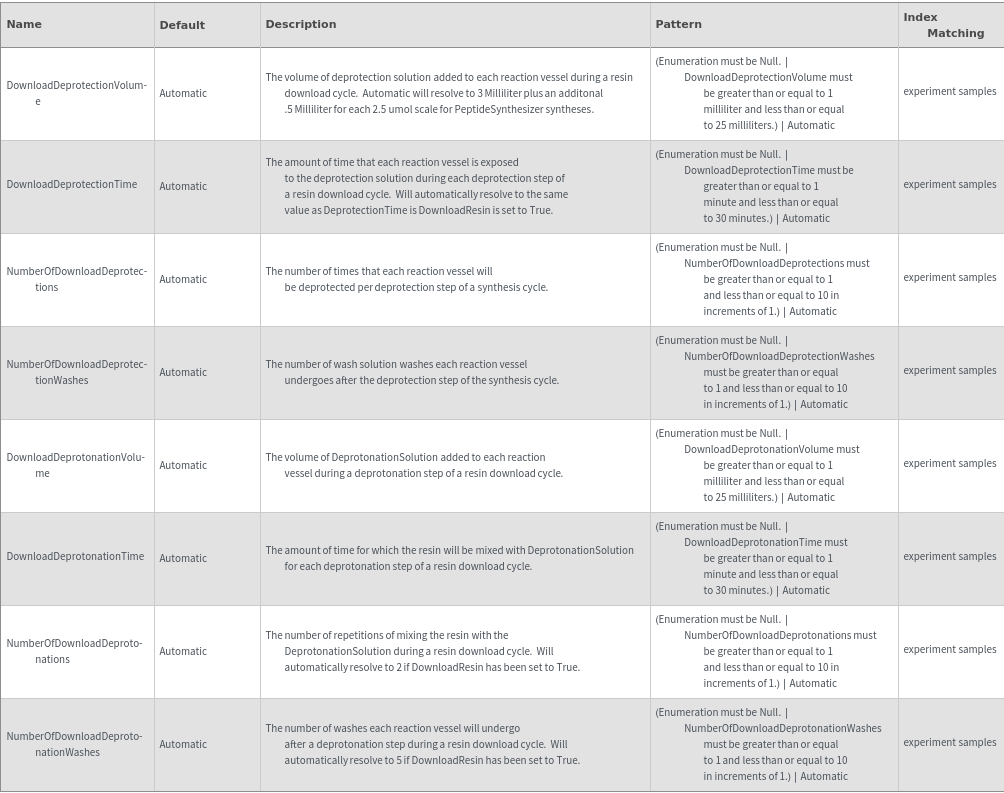

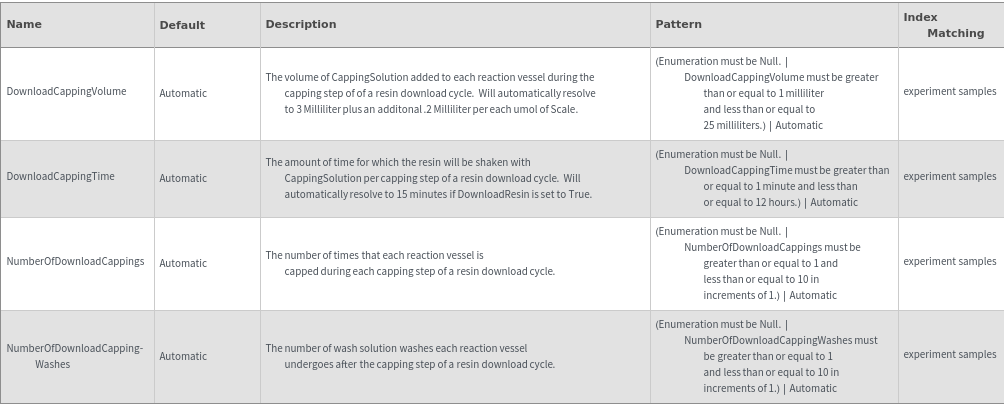

    Download Capping Options

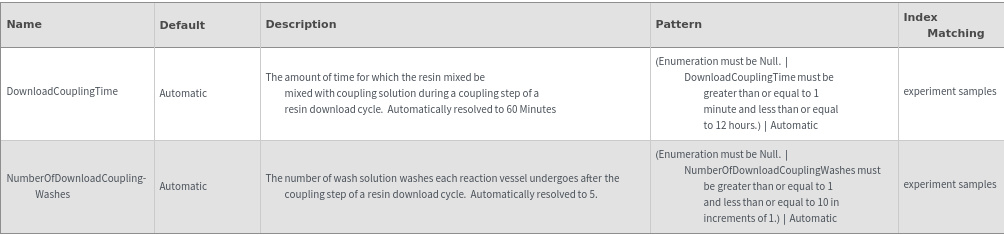

    Download Coupling Options
    Download Deprotection Options

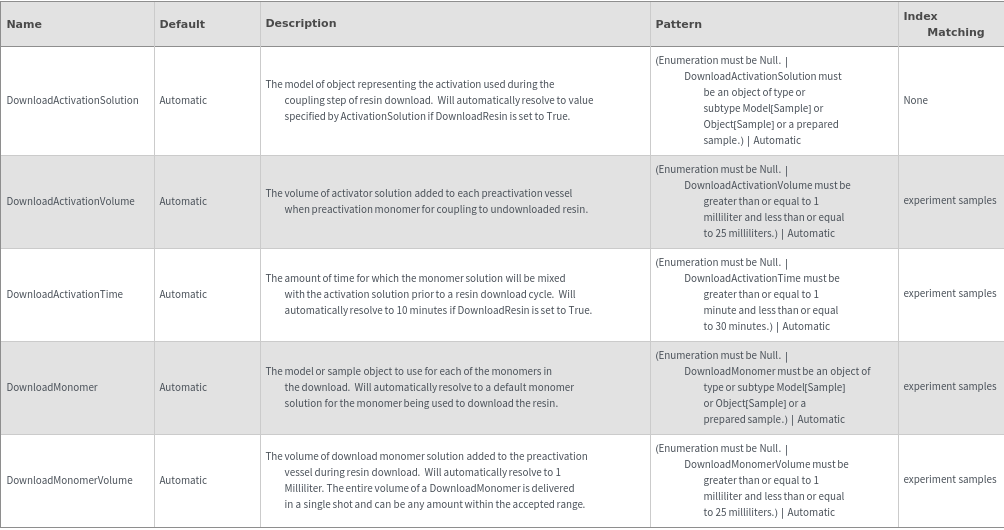

    Download Monomer Activation Options

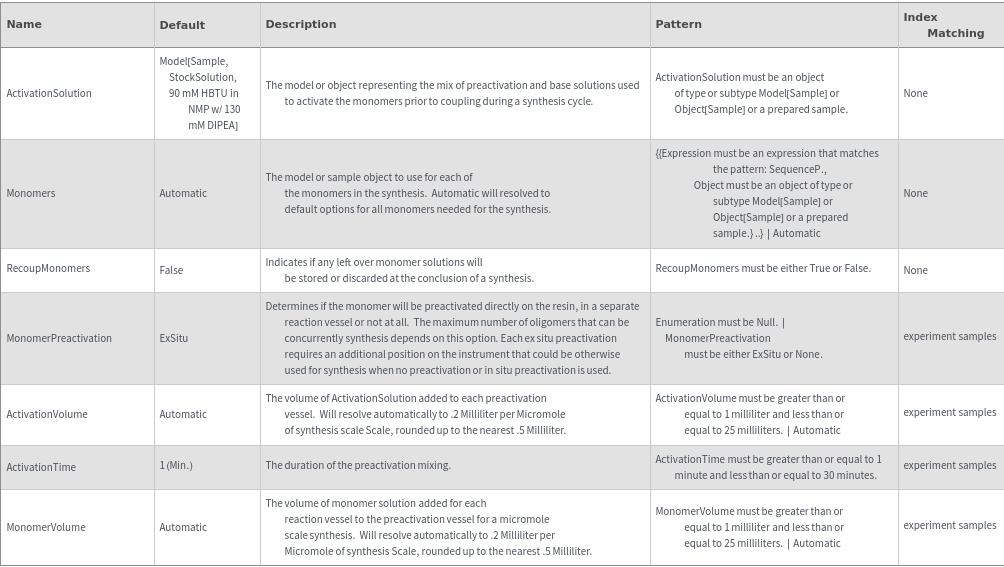

    Monomer Activation Options
    Organizational Information Options

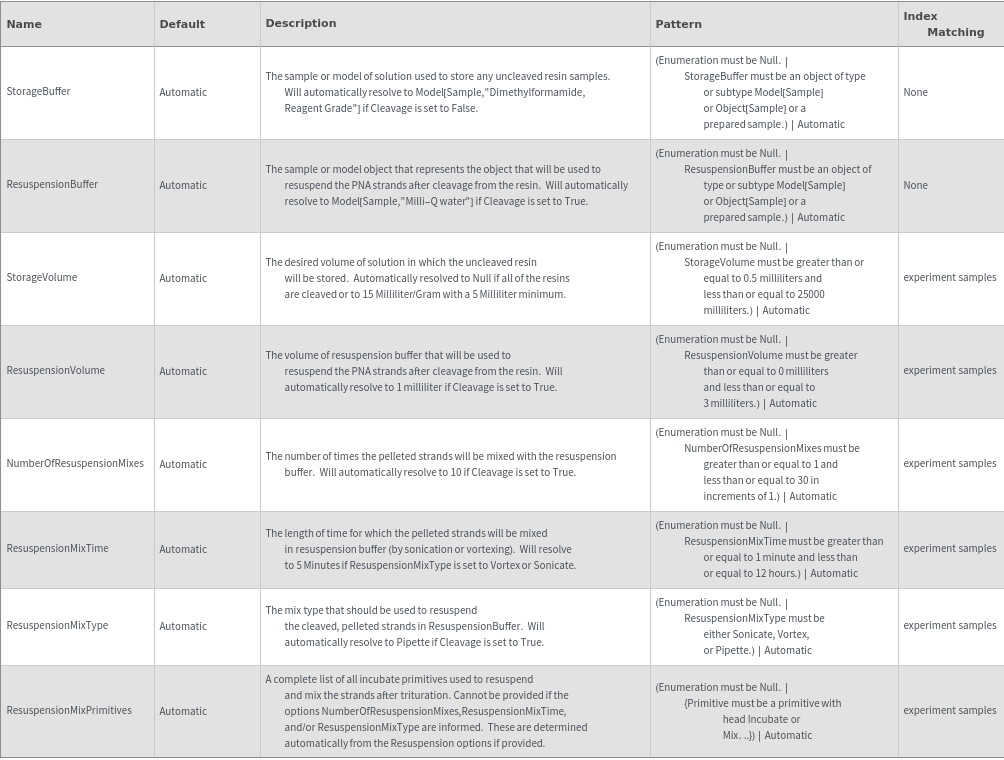

    Post Experiment Options

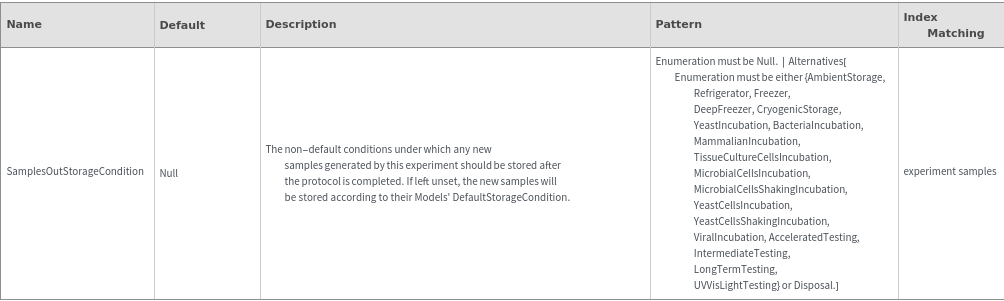

    SampleStorage Options

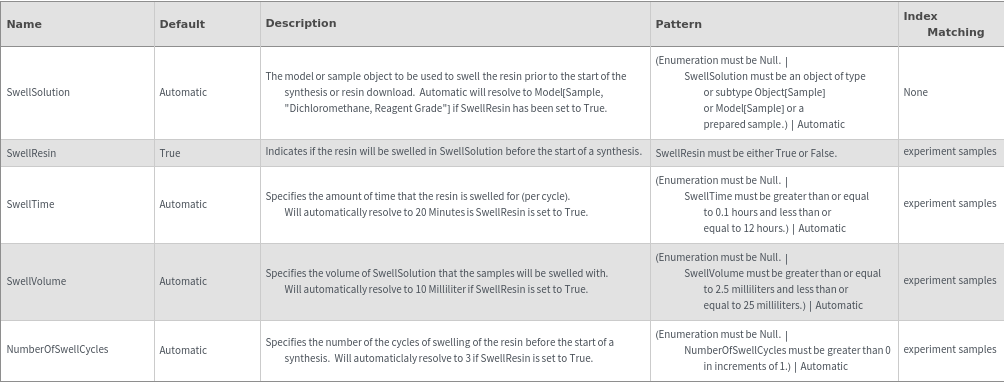

    Swelling Options

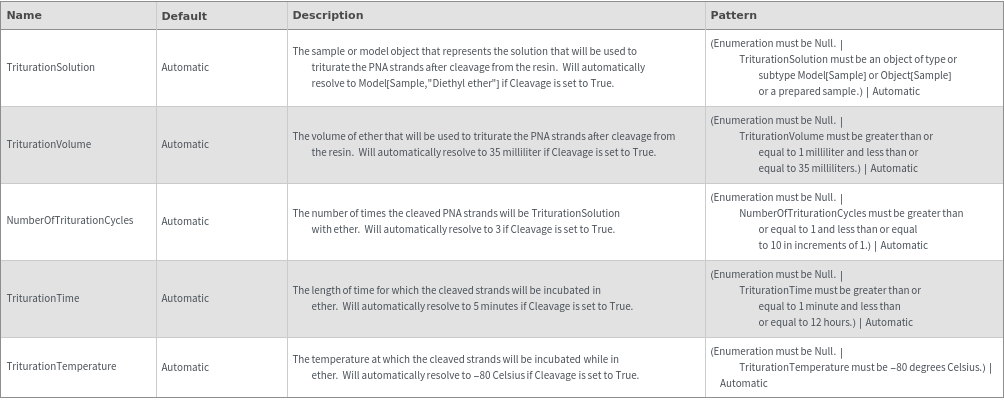

    Trituration Options

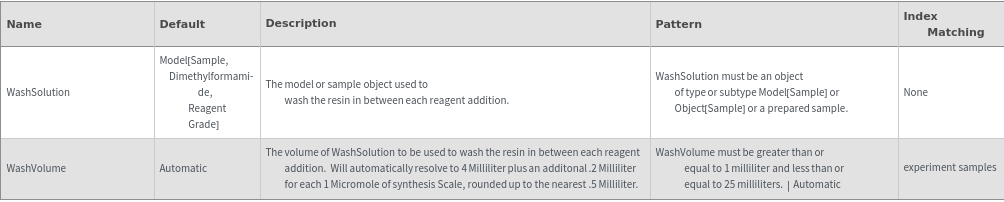

    Washing Options

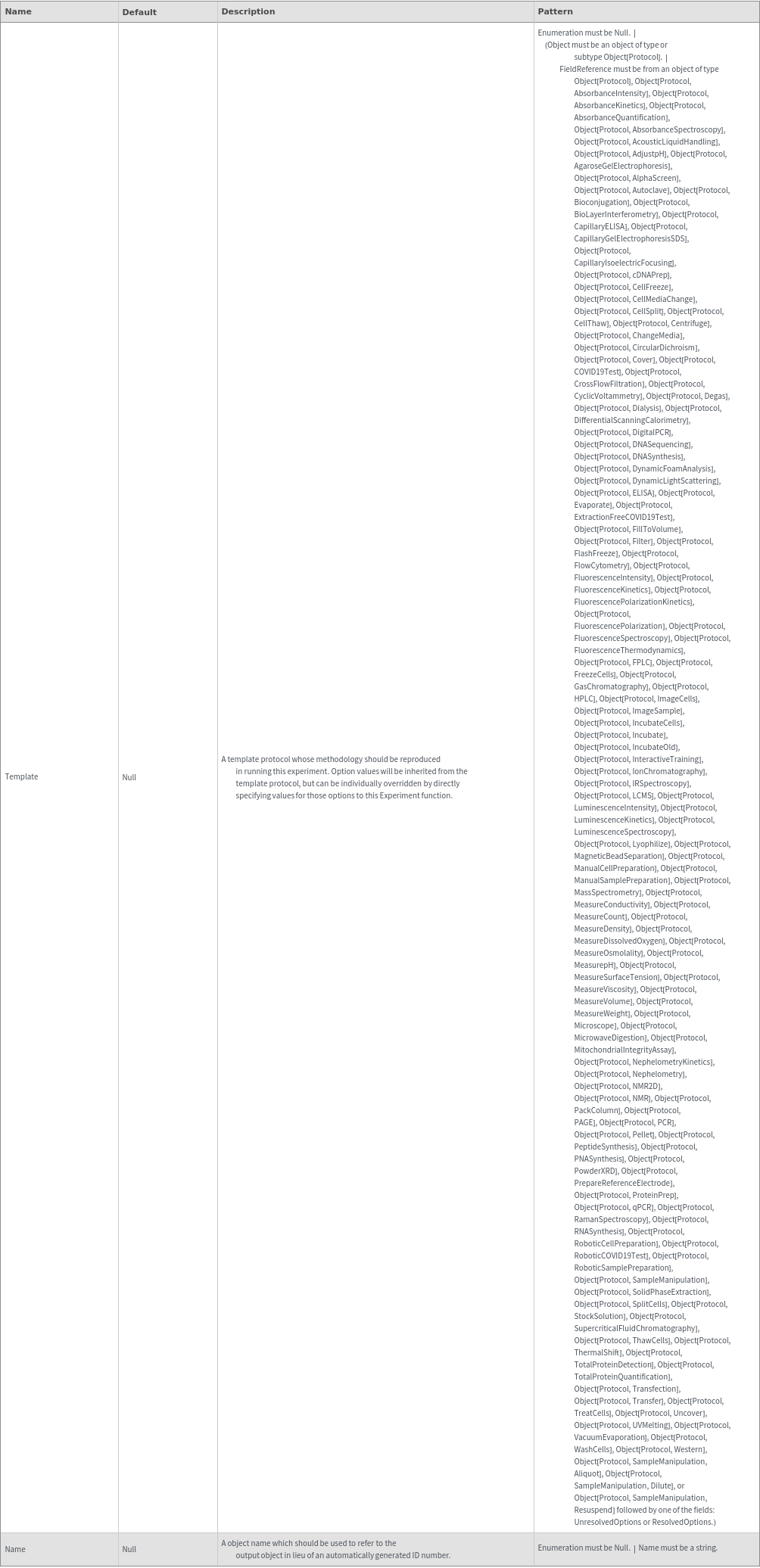

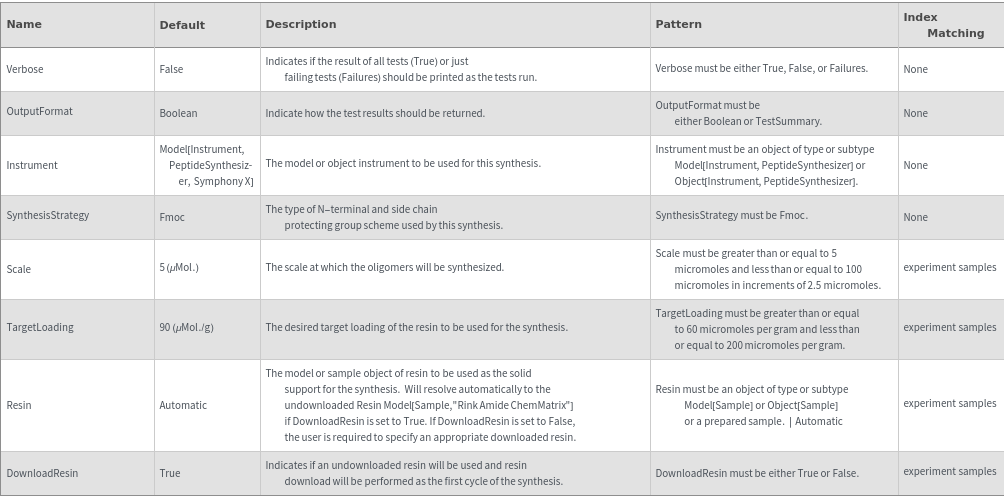

    General Options

Examples

Basic Examples  (2)

Validate an ExperimentPNASynthesis call to synthesize a single strand:

Validate an ExperimentPNASynthesis call to synthesize multiple strands:

Options  (2)

OutputFormat  (1)

Validate an ExperimentPNASynthesis call to synthesize a single strand, returning an ECL Test Summary:

Verbose  (1)

Validate an ExperimentPNASynthesis call to synthesize a single strand, printing a verbose summary of tests as they are run:
