PlotAbsorbanceSpectroscopy

PlotAbsorbanceSpectroscopy[spectroscopyObjects]plot

provides a graphical plot of spectra belonging to spectroscopyObjects.

PlotAbsorbanceSpectroscopy[spectrum]plot

provides a graphical plot of the provided spectrum.

Details

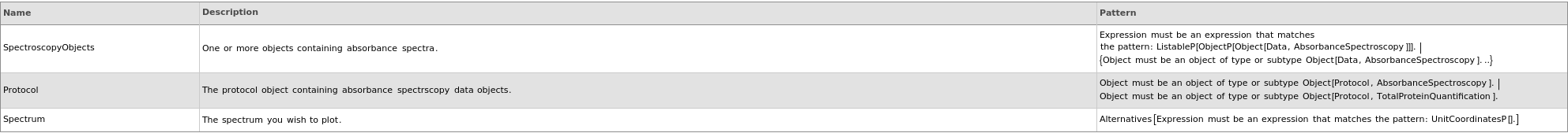

    Input

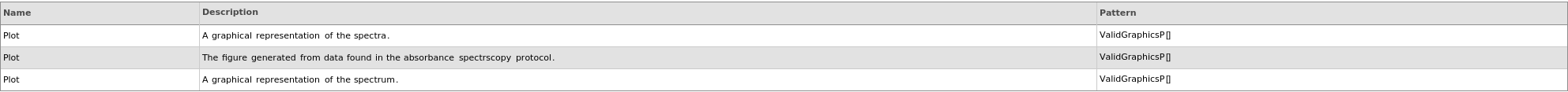

    Output

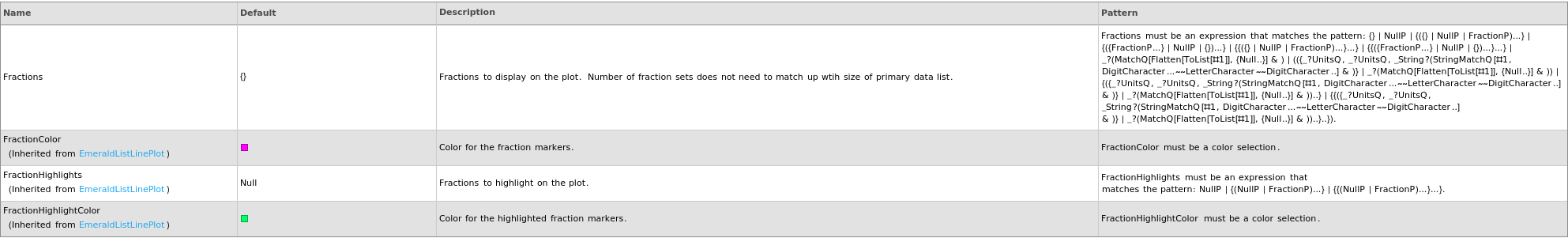

    Fractions Options

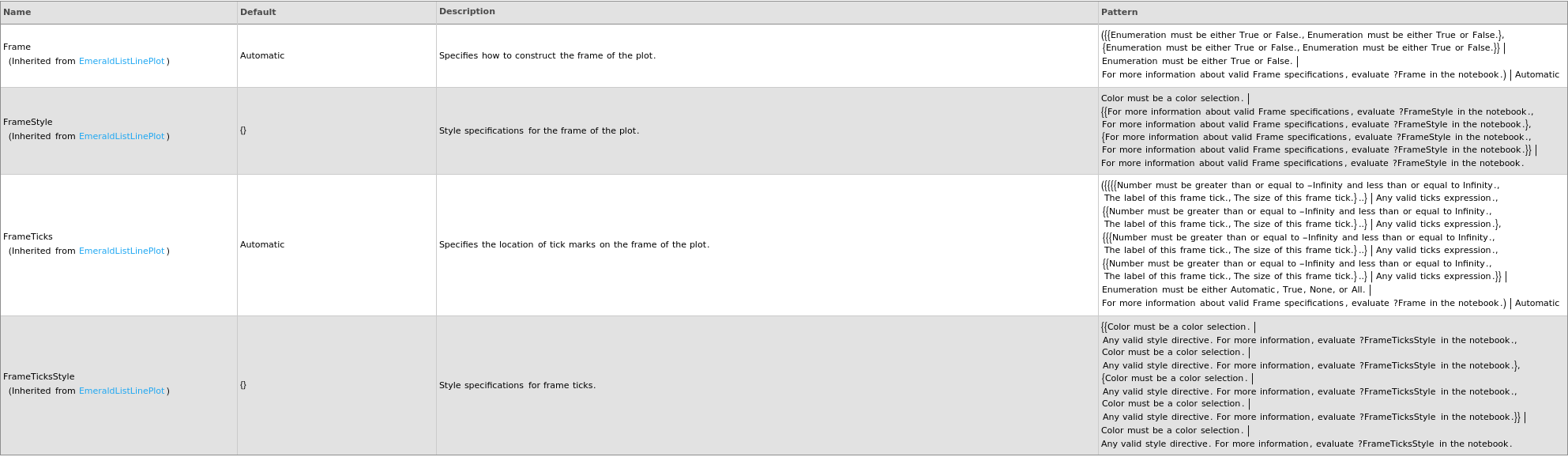

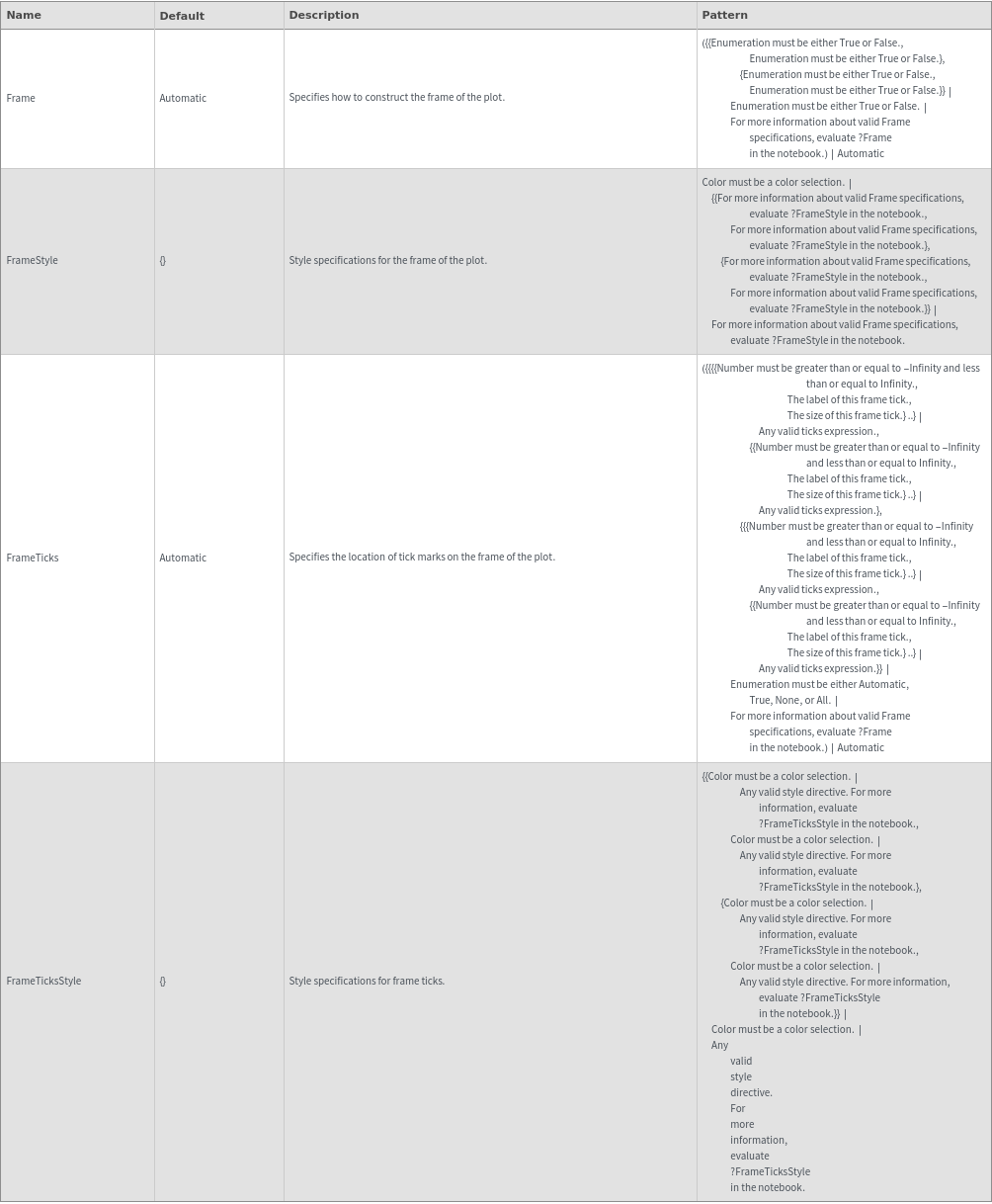

    Frame Options

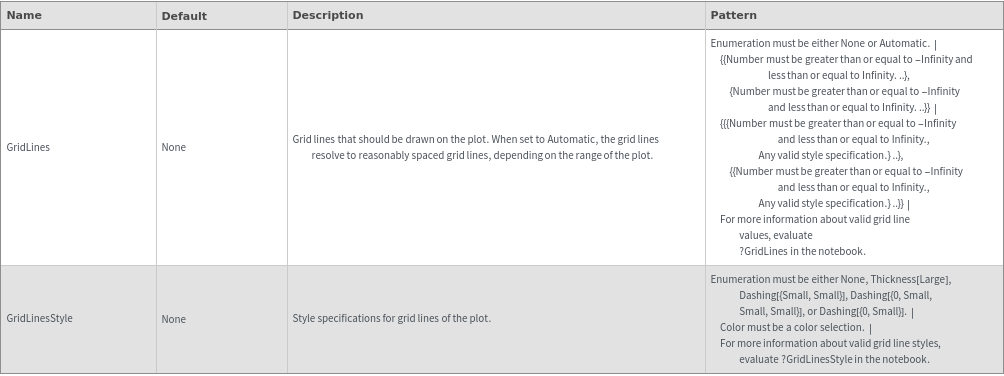

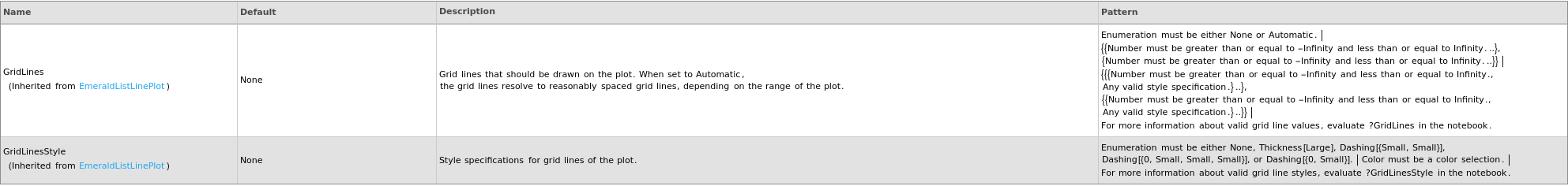

    Grid Options

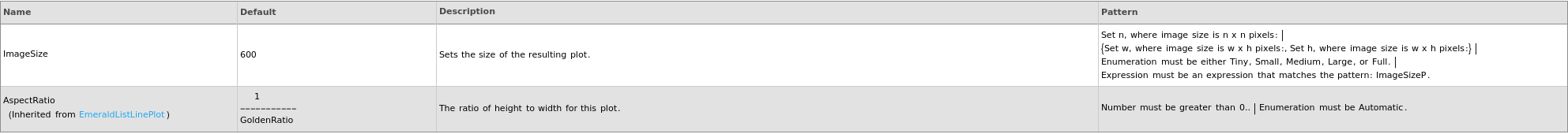

    Image Format Options
    Ladder Options

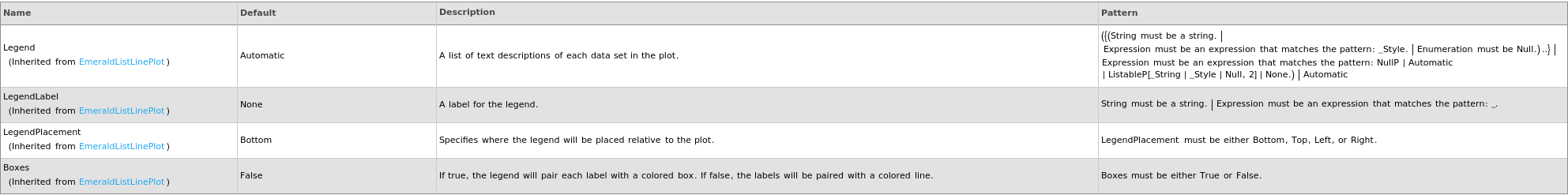

    Legend Options

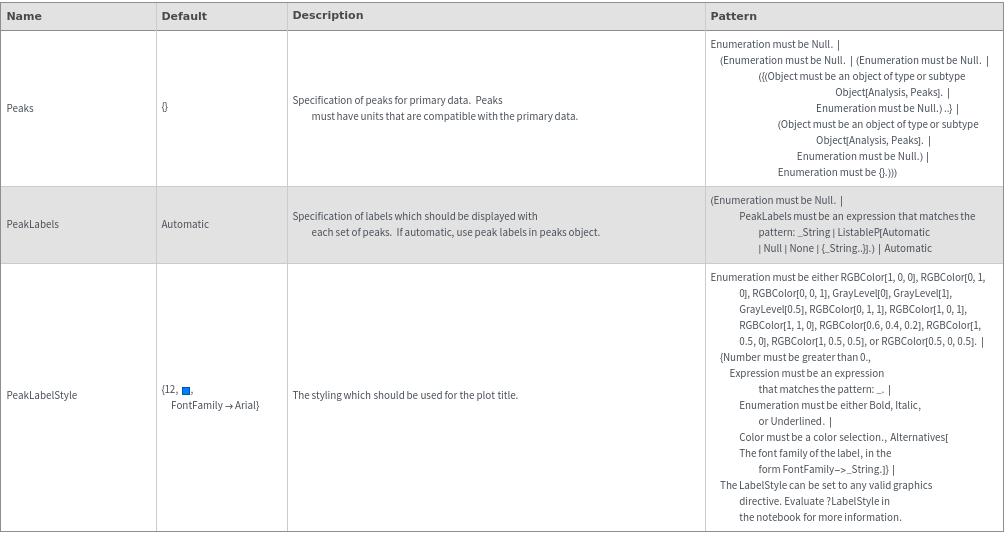

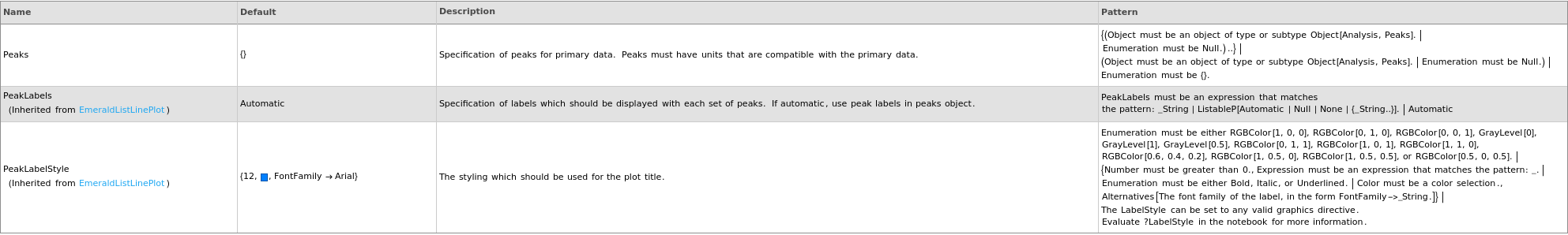

    Peaks Options

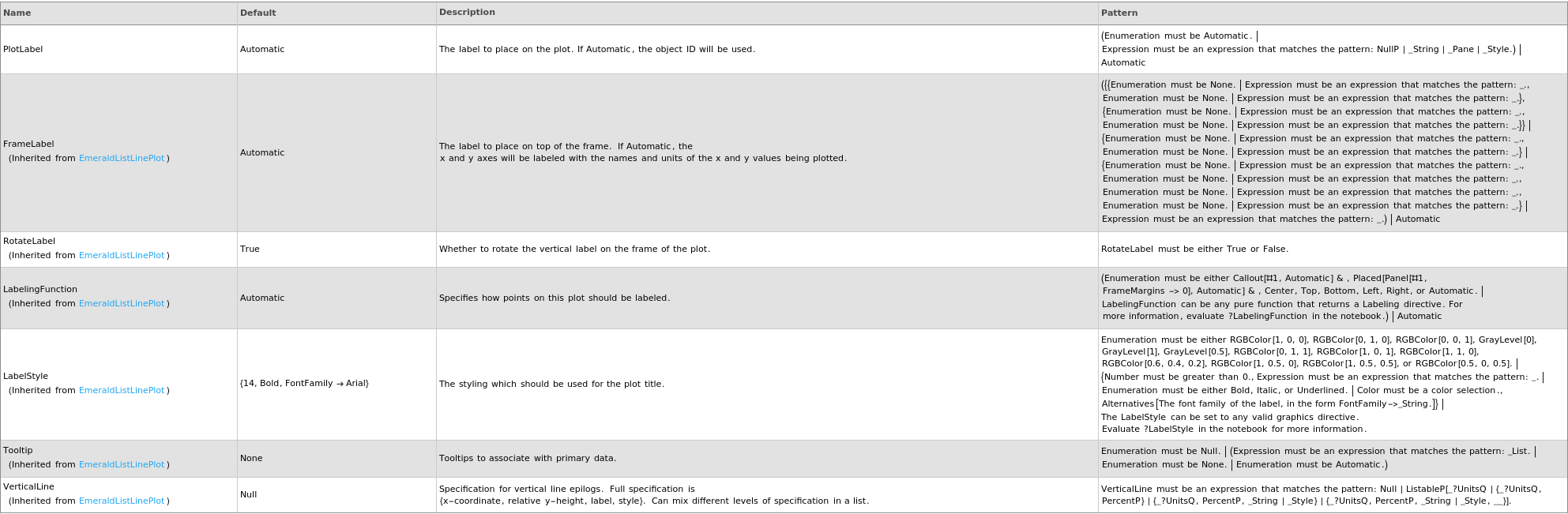

    Plot Labeling Options

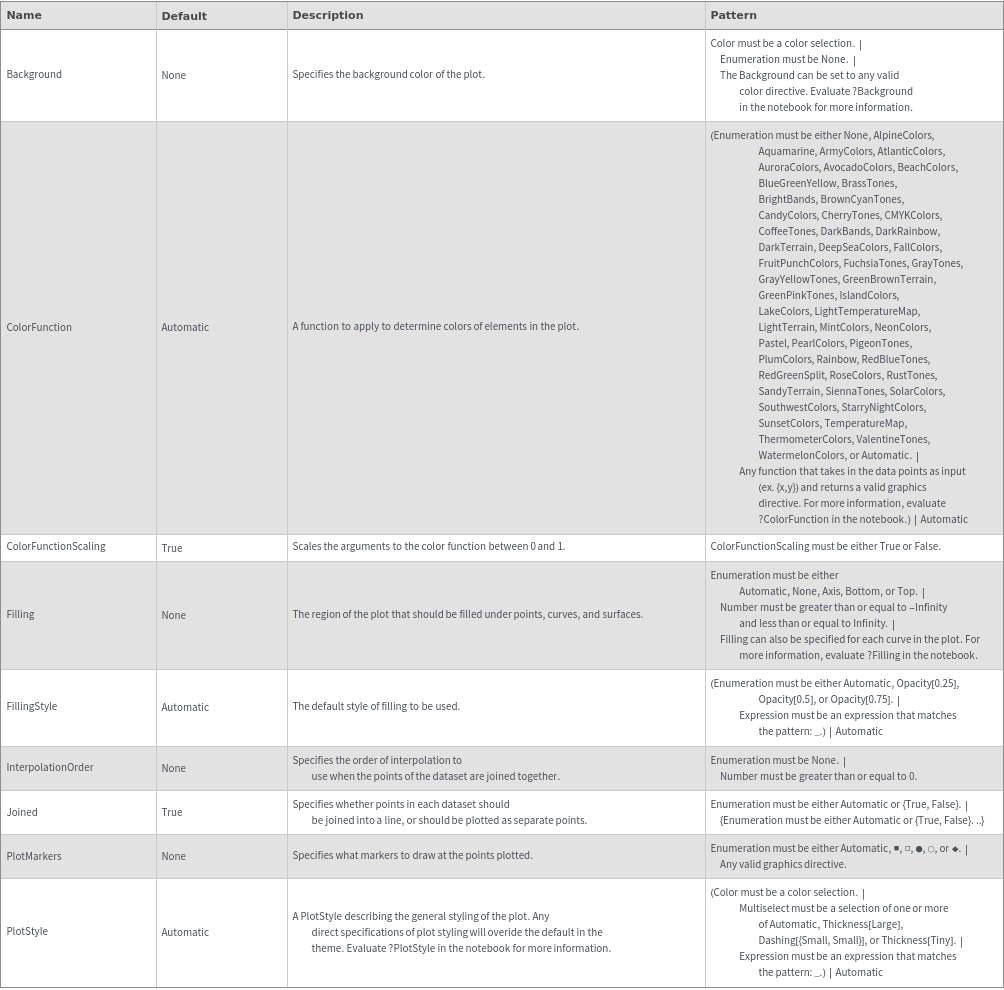

    Plot Style Options

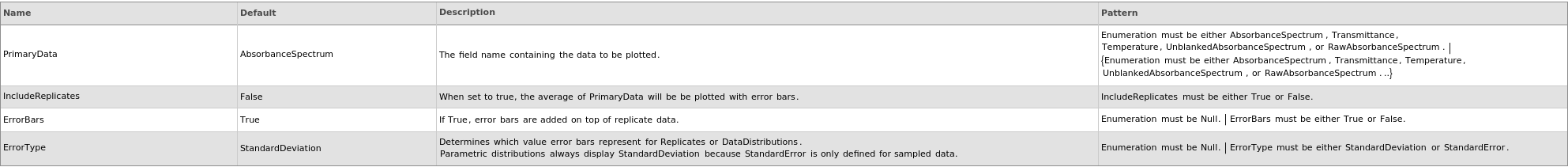

    Primary Data Options
    Raw Data Options

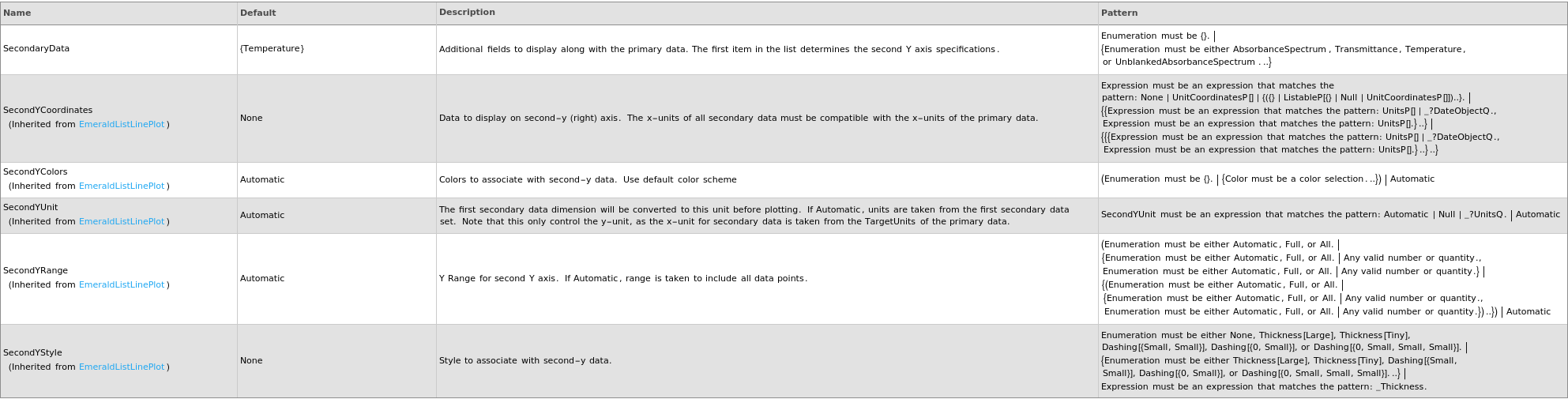

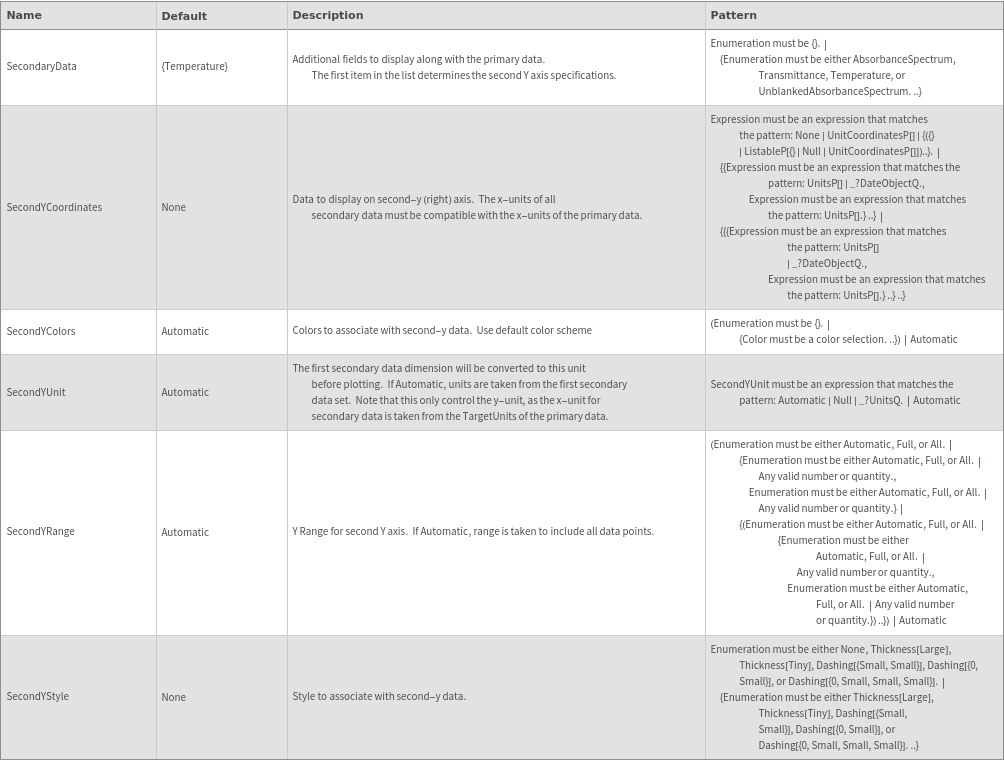

    Secondary Data Options
    General Options

Examples

Basic Examples  (4)

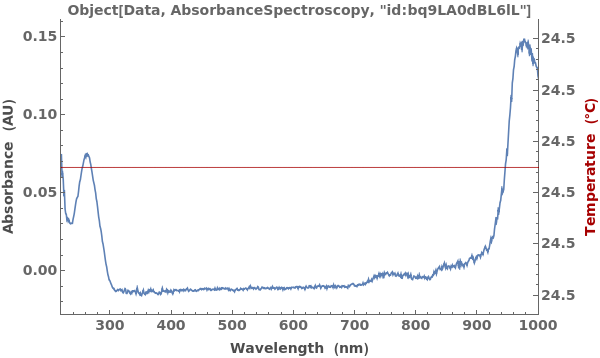

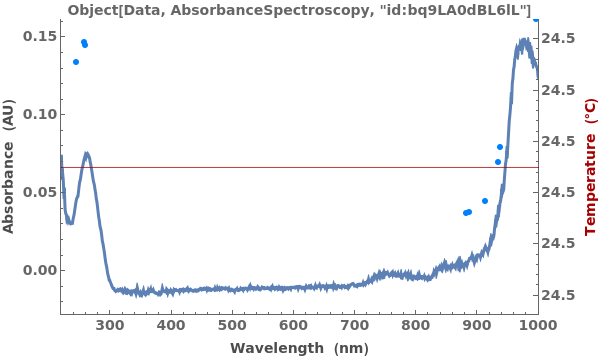

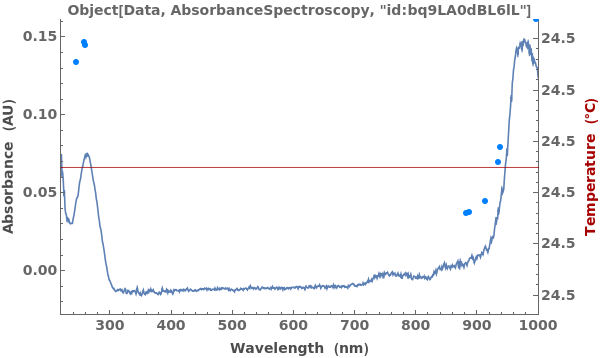

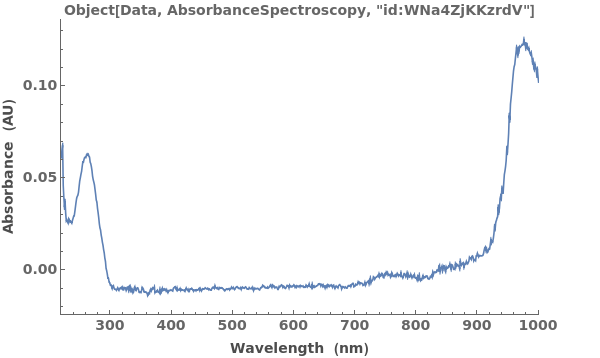

Plots absorbance spectroscopy data when given an AbsorbanceSpectroscopy data object:

Plots absorbance spectroscopy data when given an AbsorbanceSpectroscopy data link:

Plots absorbance spectroscopy data when given a list of XY coordinates representing the spectra:

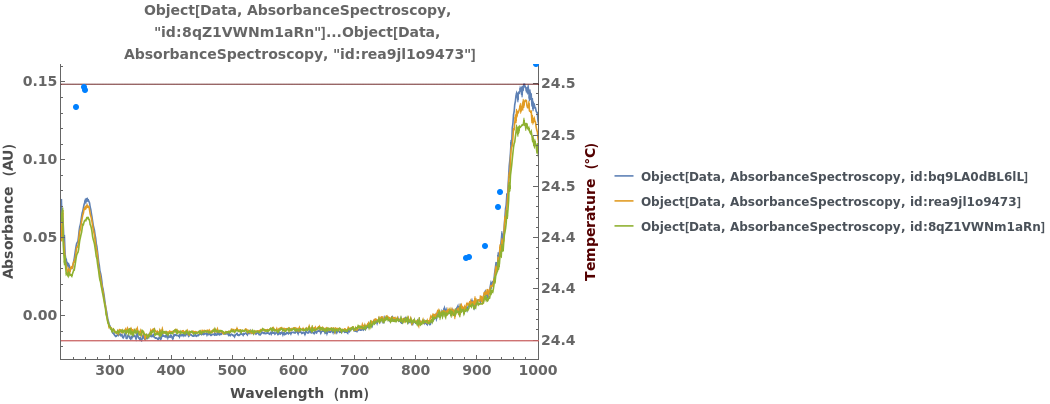

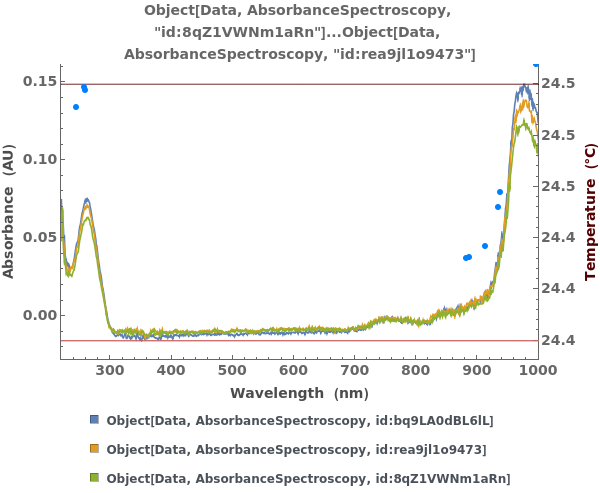

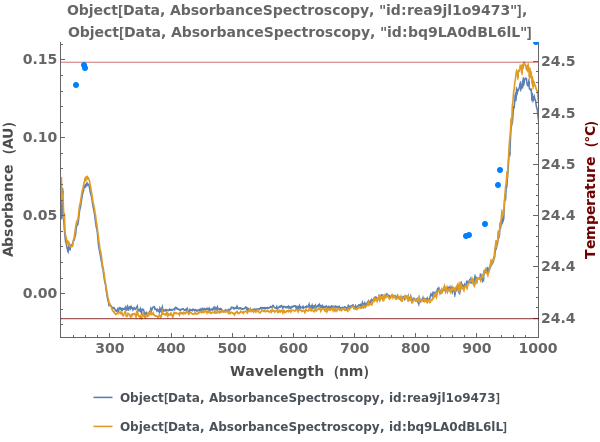

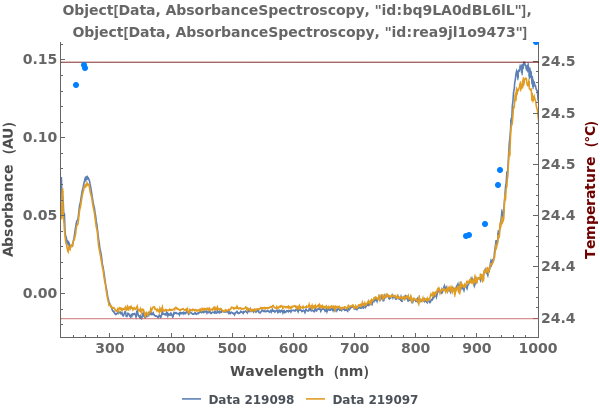

Plots multiple sets of data on the same graph:

Options  (24)

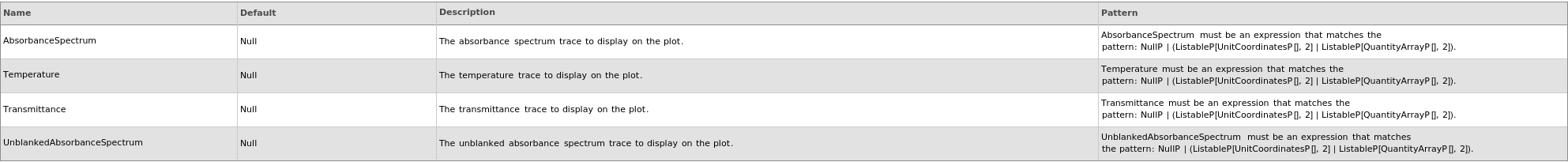

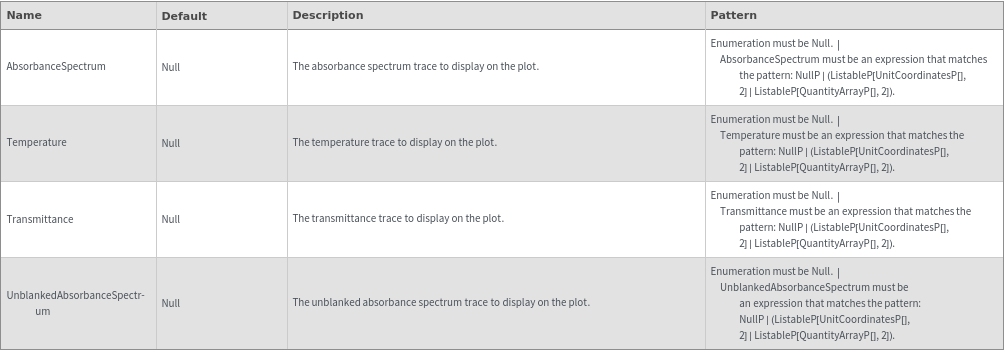

AbsorbanceSpectrum  (1)

Provide a new value for the AbsorbanceSpectrum instead of using the value recorded in the object being plotted:

Boxes  (1)

Indicate that colors in the legend should be displayed using colored squares instead of lines:

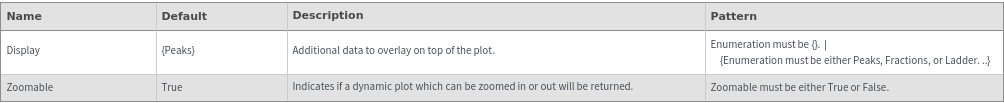

Display  (1)

By default picked peaks are displayed on top of the plot. Hide peaks by clearing the display:

ErrorBars  (1)

Toggle whether or not the error bars are displayed:

ErrorType  (1)

Indicate which statistic is used to generate the error bars:

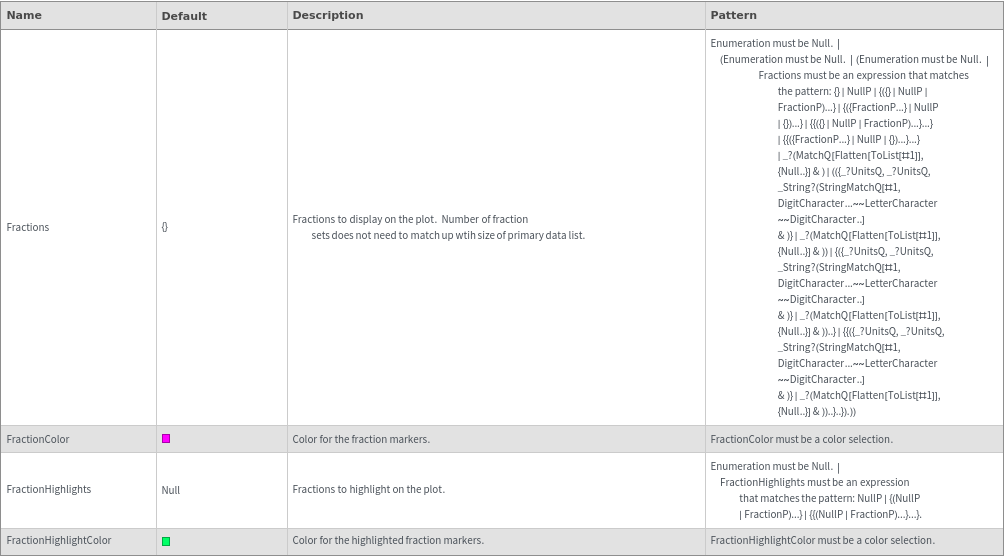

Fractions  (1)

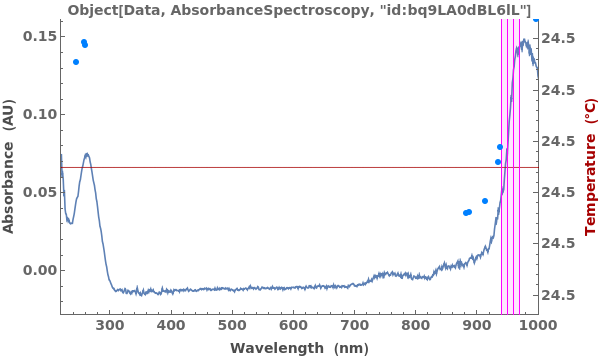

Indicate a series of fractions to overlay on the plot:

FrameLabel  (1)

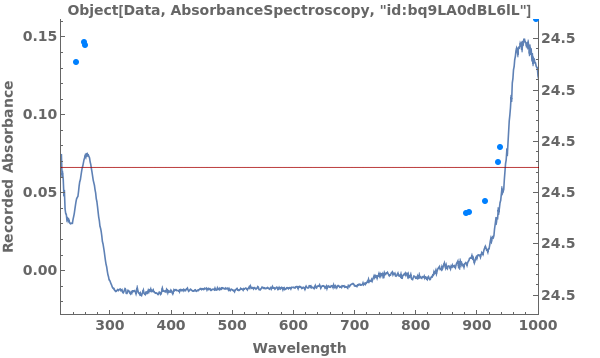

Specify custom x and y-axis labels:

ImageSize  (1)

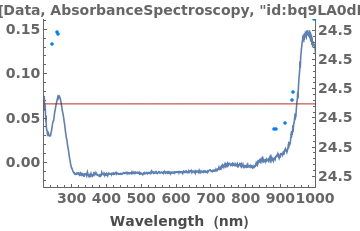

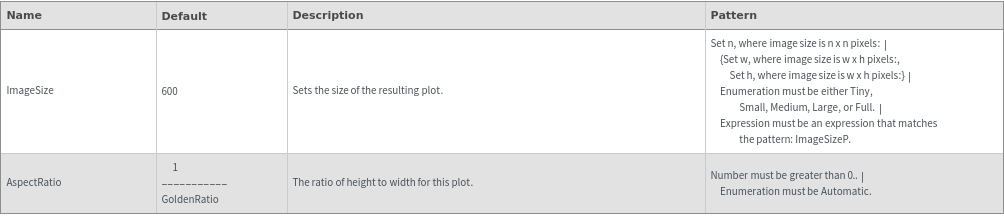

Specify the dimensions of the plot:

IncludeReplicates  (1)

Indicate that replicate data should be averaged together and shown with error bars:

Legend  (1)

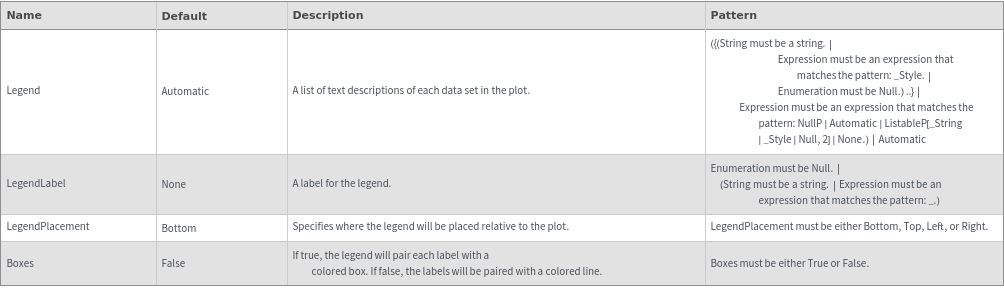

Provide a custom legend for the data:

LegendPlacement  (1)

Indicate that the legend should be placed to the right of the plot:

Map  (1)

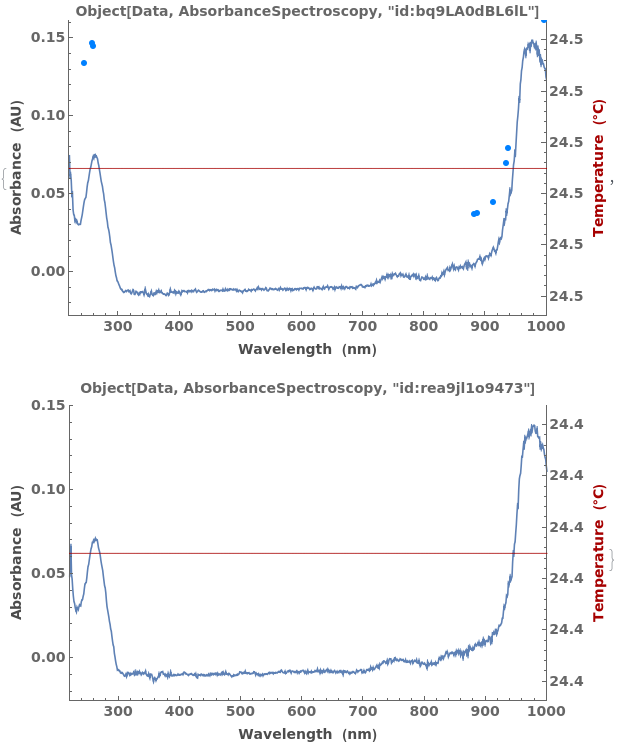

Generate a seperate plot for each data object given:

OptionFunctions  (1)

Turn off formatting based on the absorbance value at a given wavelength by clearing the option functions:

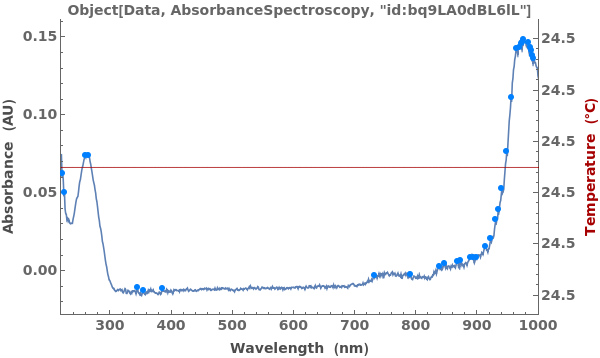

Peaks  (1)

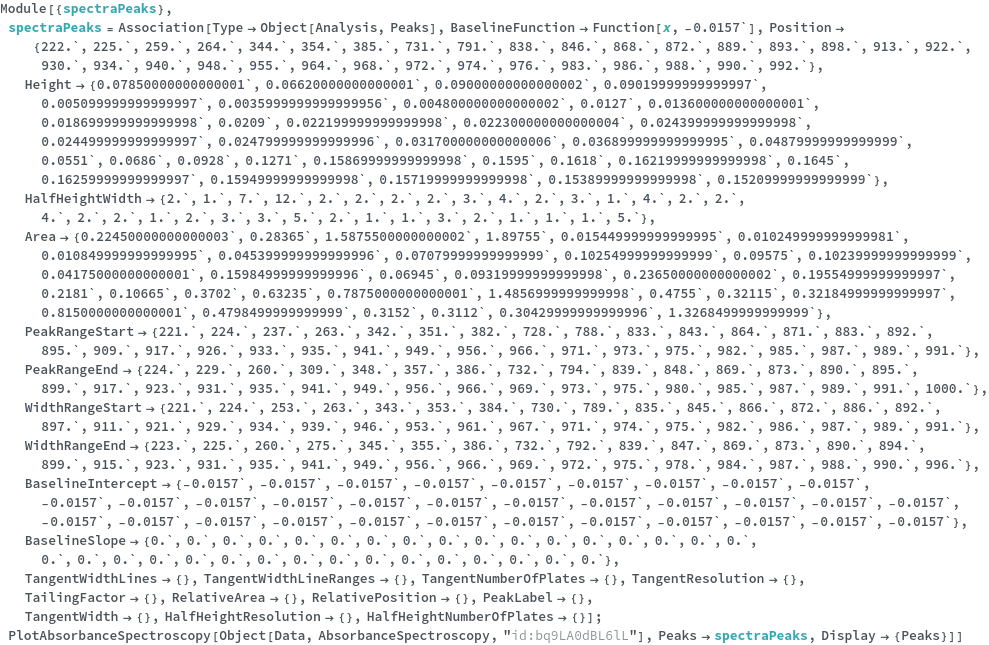

Highlight specified peaks on mouseover:

PlotLabel  (1)

Provide a title for the plot:

PlotTheme  (1)

Indicate a general theme which should be used to set the styling for many plot options:

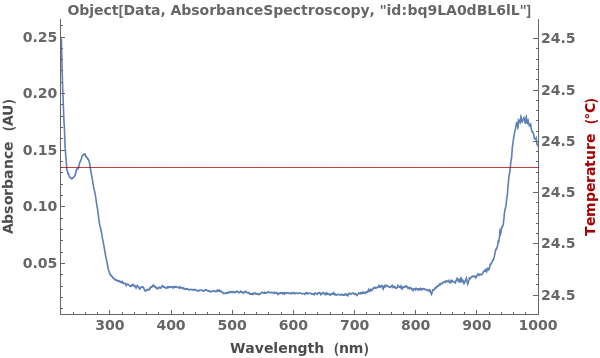

PrimaryData  (1)

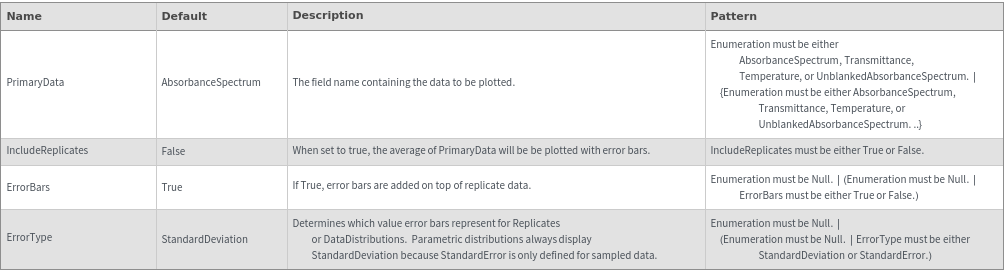

Indicate that the raw absorbance spectrum prior to blanking should be plotted on the y-axis:

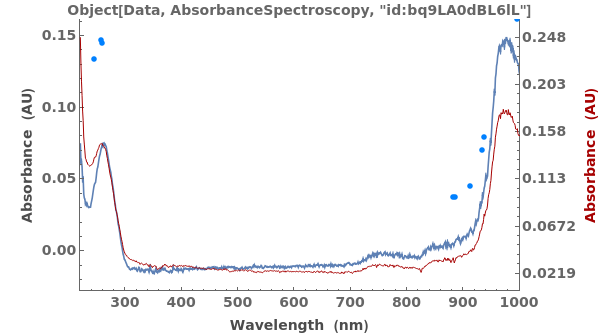

SecondaryData  (1)

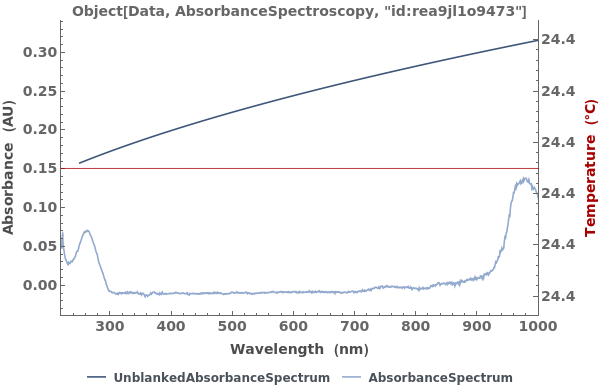

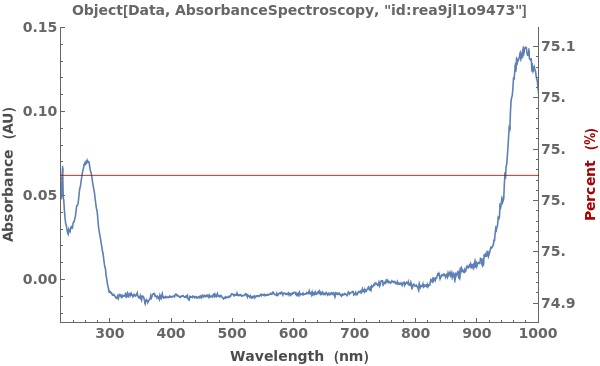

Indicate that the raw absorbance spectrum prior to blanking should be plotted on the second y-axis:

TargetUnits  (1)

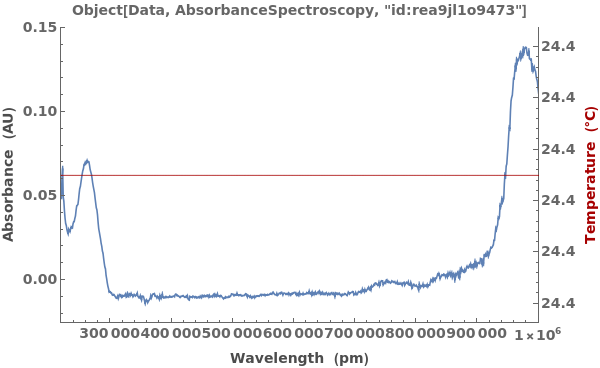

Plot the x-axis in units of pm:

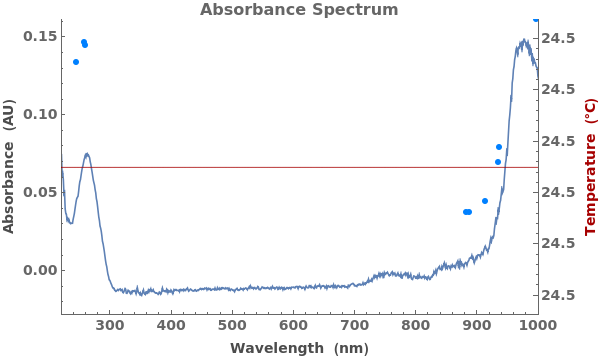

Temperature  (1)

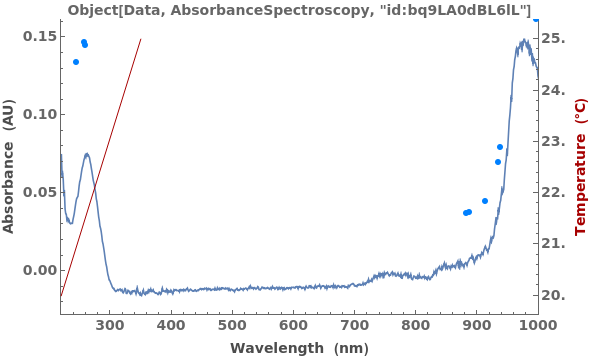

Specify a temperature trace for the spectra other than the one shown in the packet:

Transmittance  (1)

Provide a new value for the Transmittance instead of using the value recorded in the object being plotted:

UnblankedAbsorbanceSpectrum  (1)

Provide a new value for the UnblankedAbsorbanceSpectrum instead of using the value recorded in the object being plotted:

Units  (1)

Specify relevant units:

Zoomable  (1)

To improve performance indicate that the plot should not allow interactive zooming:

Messages  (4)

HighRamanSpectraDensity  (1)

Dummy Test:

NoDataForPlotRamanSpectroscopyOutput  (1)

Dummy Test:

RamanMeasurementPositionSpectraMismatch  (1)

Dummy Test:

WavelengthRequired  (1)

Dummy Test:
